Advanced Digital Color Doppler System

1. Monitor supporting 180 °free adjustment, a wideranged size choice,  ​​​​​​​19 inch LCD monitor standard 2. Operation panel characterizing numerical control back light, fast regulation and one-key easy optimization 3. Four probe connectors, free prob
Item Code: CCB-FDC8100
Sold: 6
    Please select the information you wantX
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • User Manual
Application: Abdomen, OB/GYN, Small Parts, MSK, Vascular, Cardiology, Emergency, ICU, Breast, Veterinary, 3D, 4D Style: Trolley Types: Color Doppler Installment Payment: Installment Payment Model

Standard Configuration:
Convex Probe
19 inch LCD monitor main unit
4 probe connectors
Without any probes

1. Monitor supporting 180 °free adjustment, a wideranged size choice,
19 inch LCD monitor standard
2. Operation panel characterizing numerical control back light, fast regulation and one-key easy optimization
3. Four probe connectors, free probe switching, hot-swapping available
4. DVD-RW, automatically starting U disk with system restoration and maintenance function
5. Newly designed ergonomic console
6. Multiple choices of language display
7. DICOM3.0, remote network assistance available
8. Graphic workstations, import from and export to typical cases generating quick diagnosis

Leading ultrasound imaging technology
1. World-advanced ultrasound platform and architecture
An 8-core DSP processor and a front-end ultrasound chip with the latest generation of "digital demodulator" is adopted,
providing powerful computing capability, high integration, low power consumption as well as seamless upgrade which supports elastography.

2. Sparse transmit & multi-beam parallel processing technology
Plane-wave transmitting as well as 16-beam parallel receiving and processing improve the frame rate of image and blood
sensitivity in B + C and B + C + D modes, achieving triplex display.

3. Pulse inversion harmonic imaging technology
Superior to traditional tissue harmonic imaging technology, pulse inversion harmonic imaging technology is applied to suppress
side lobes and improve contrast resolution of the tissue with counteracted fundamental and enhanced harmonic.

4. Synthetic aperture beam-forming technology
Break of restrictions traditional DAS beam-forming algorithm has on the number of physical channels generates excellent
images both in near field and in far field with smaller hardware and lower transmit power.

5. A continuous transmit focus at every pixel
The distance differences of transmitting sound waves and those of receiving sound waves are calculated simultaneously,
resulting to higher imaging precision and accuracy.
Diagnostic differences caused by differentiation of operators are lessened with no focus displayed and no need of manual

6. Speckle noise suppression technology
Removal of speckle noise significantly clears and smooths the 2D image.

7. Freehand 3D & 4D imaging technology
The detection rate of fetal malformation is raised substantially .


1) 3.5MHz convex probe( 128 elements)
2) 5.0 Micro-convex probe
3) 7.5MHz High frequency linear probe
4) 6.5 MHz Transvaginal probe
5) 4D probe and software
6) Trolley cart
7) video printer,
8)Biopsy bracket
9) 3D/4D function support

Optional Information

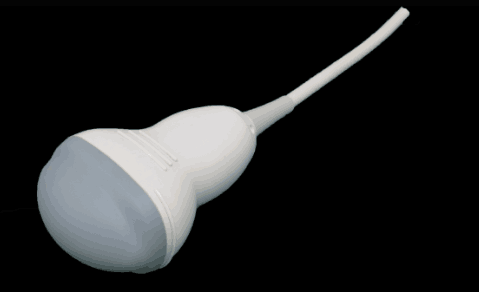

1) 3.5MHz convex probe( 128 elements)
Applications:   Abdominal, Obstetrics, Gynecology, Regional nerve block,
Procedure and Biopsy guidance

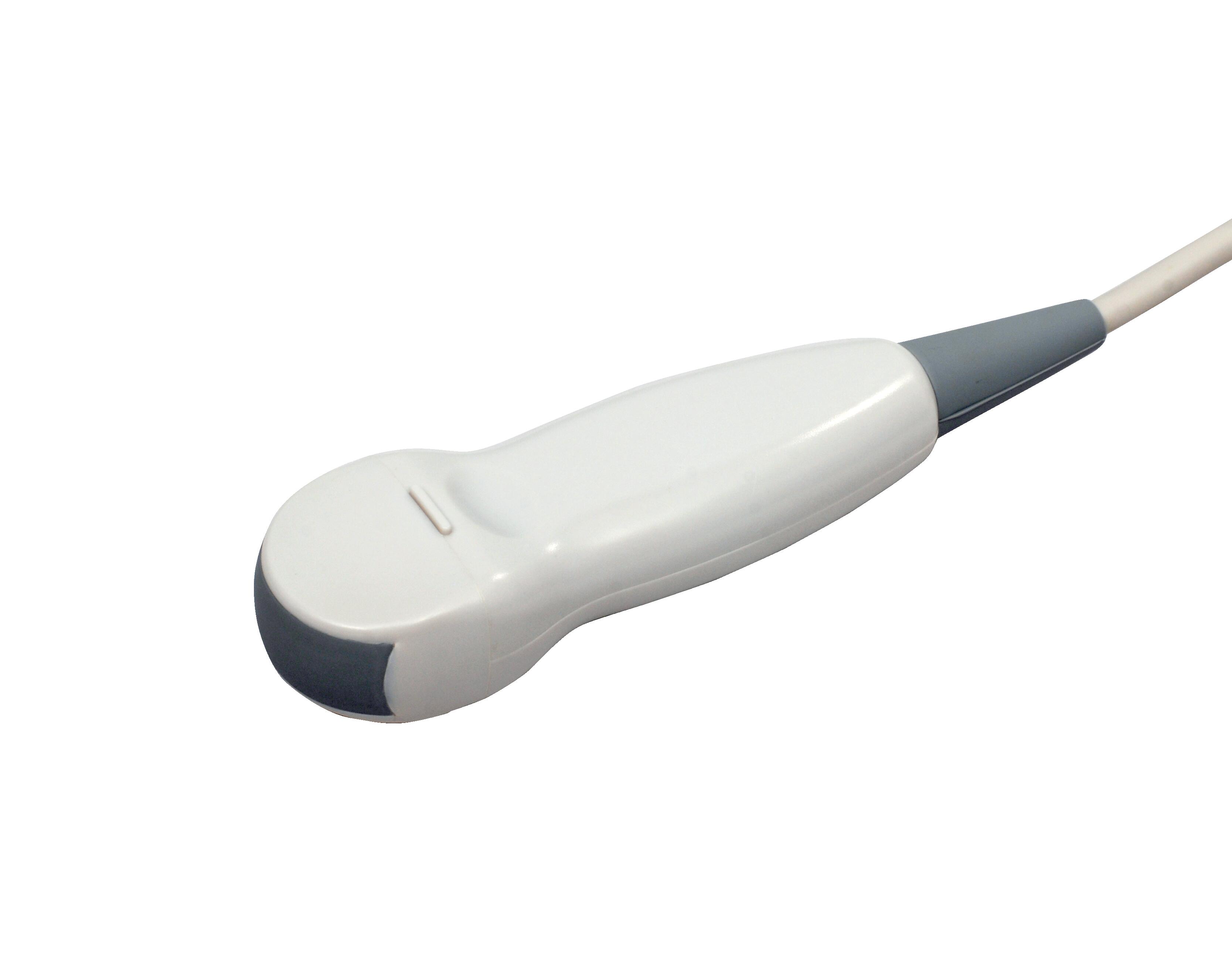

2) 5.0 Micro-convex probe
Applications:  Abdominal, Urology, vascular,Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal

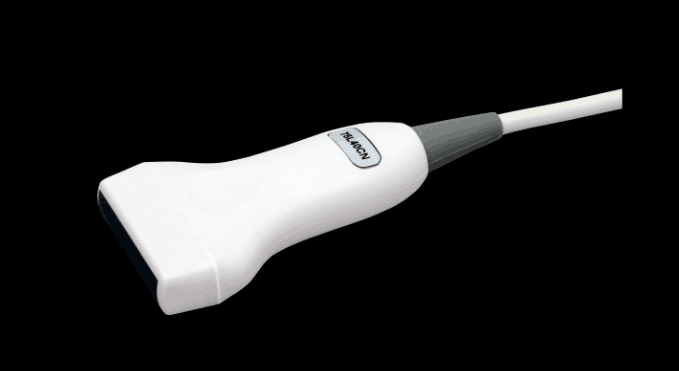

3) 7.5MHz High frequency linear probe
Applications:  Breast, small parts, nerve, vascular, venous access,
musculoskeletal, biopsy guidance

4) 6.5 MHz Transvaginal probe
Applications:  Obstetrics, gynecology

5) 4D probe and software

6) Trolley cart , Package size: 77*51*29, Gross Weight: 12kg

7) video printer
Sony Brand UP-X898MD model, Color Video Printer

Mitsubishi Brand P93C model, Black Video Printer

8) 3D function support
9) Biopsy bracket
Can be used in convex,Linear and Transvaginal probes.

Shipping Information:

G.W: 90kg

Packing Size: 0.95m,0.7m,1.4m

Unit: Piece

Special: No
