Product info

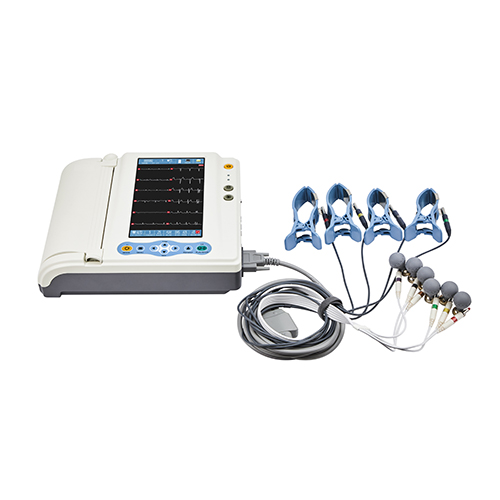

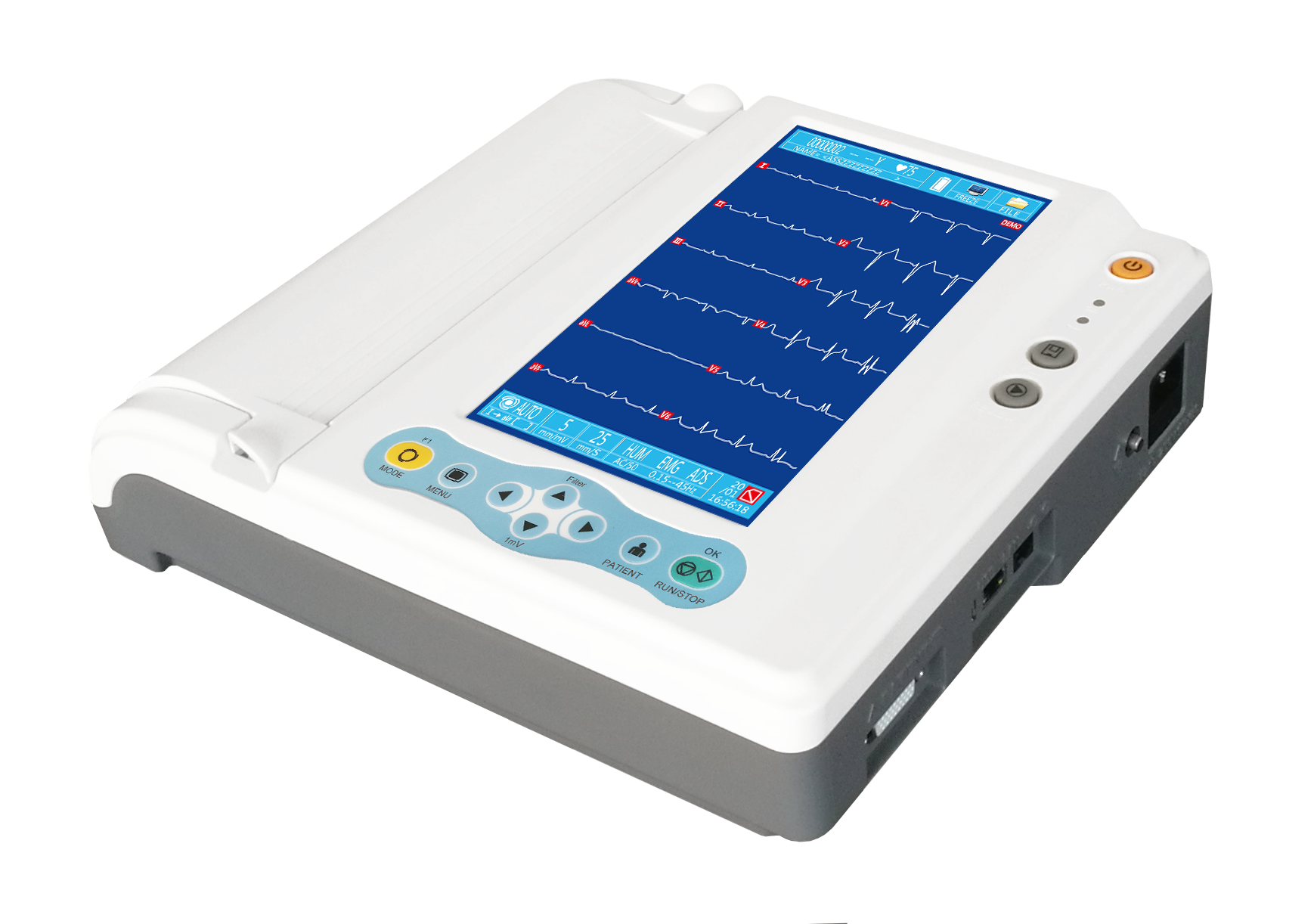

- Product name：12 channels 12 leads color ECG EKG machine
- Product code：CCE-5512G
Packaging Specifications
- Outer Packaging Size：0.39 × 0.34 × 0.21 m
- Gross Weight：5.5 kg
- Net Weight：4.8 kg
- Volume：0.03
Description
BRIEF INTRODUCTION
The CCE-5512G is an advanced and reliable portable 12 channel ECG machine helping clinicians make fast and accurate ECG diagnosis. It can be widely used in various medical institutions or occasions. The user-friendly design makes it very convenient to use.
ADVANTAGES
- DIAGNOSIS
Fast and accurate ECG diagnosis for adult andpediatric patient.
- OPERATION
Ergonomic design, rich menu setting and good usability.
- PERFORMANCE
Stable performance, durable and reliable,with good market history.
- ANALYSIS
Auto interpretation, can analyze over 200 types of abnormal ECG.
- DATA MANAGEMENT
Practical data transmission function, external USBflash disk storage.
- POWER SUPPLY
Low-power consumption design and long batteryworking time.
PRODUCT FEATURES
Sampling and Analysis
Acquisition and record standard 12 lead ECG simultaneously. Sampling rate 32000Hz.
High accuracy digital filter system. Automatic base line adjustment.
Accurate pulse pace identification function.
Excellent auto-interpretation function can analyze over 200 types of abnormal ECG. ( Analysis data base: Minnesota Code ).
ECG Record

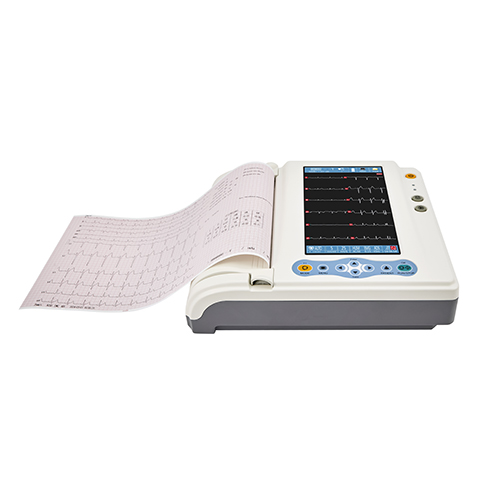

High resolution thermal printing system.
Four working modes: Auto, Manual, R-R, Store, to meet different clinical requirements.
Recording format: 3chx4+3R, 6chx2, 6chx2+R, 12x1 and 1 minute of rhythm lead record.
Printing paper size: 210mmx30m, roll paper or 210mmx140mm z-fold paper.
Patient Information and File Management
With big touch screen, very easy to input and edit patient information.
Can record detailed patient information, including name, ID, gender, age, height, weight, blood pressureand hospital name.
Can store, replay and edit 400 ECG cases with internal memory card. Support external USB drive storage.
Display and Keypad
800x480 graphic, 9-inch color LCD to display detailed ECG waveform and working status. (Display ECG waveform, patient information, sensitivity, paper speed, filter, date and time, heart rate, battery status, paper status, error message and etc. )
Soft silicon keyboard and touch screen to operate and input information.
One-key operation to support fast ECG examination.
Power Supply
Rechargeable Lithium battery, 4400mAh, 14.4V, support to continuously work about 18 hours.
Low-power consumption and fast charging design, about 4.5 hours to charge full.
Automatic voltage regulation design, adapt for power supply of 110-230V, 50/60Hz.
Physical Design

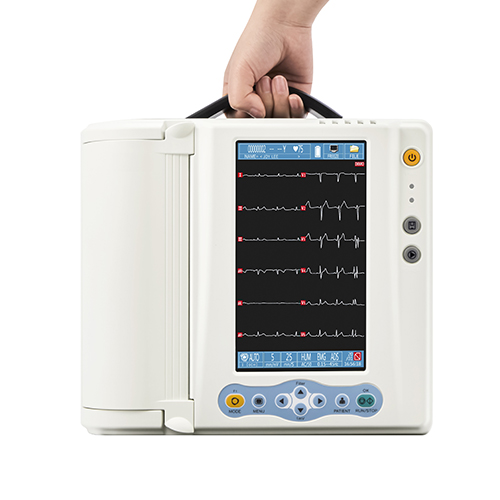

Compact and ergonomic design, easy to carry and operate.
Proper size and proper weight, very convenient for mobile diagnostics.
Measurement: 310mmx278mmx76mm, 3.0kgs.
Interface and Communication
With UART and USB communication port.
Support transferring ECG files to external USB disk for storage.
Support connecting to computer to manage ECG data with PC ECG Management Software. (optional).
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS | |
| Main Unit | Lead Lead acquisition Sampling rate Working mode Filter CMRR Input circuit Input impedance Patient current leakage Frequency response Calibrating voltage Sensitivity Paper feeding speed Accuracy of data Time constant AD conversion Inter-channel interference Noise level HR detection range | Standard 12 leads ( I, II, III, aVR, aVL, aVF, V1 to V6 ) 12 leads synchronously acquisition 32000Hz MAN, AUTO, R-R, STOR AC Filter: 50Hz / 60Hz / Off EMG Filter: 25Hz / 45Hz / Off ≥120dB (with AC Filter) Floating; Protection against defibrillator effect ≥2.5MΩ (10Hz) <10μA 0.05-150Hz (-3dB） 1mV±5％ 2.5, 5, 10, 20, 40, mm/mV (±3%), Auto 6.25, 12.5, 25, 50mm/s(±3％) <±5% or <±40μV ≥3.2s 12 bits <2% <30μ Vp-p 30-300 BPM (±1BPM) |
| Packing Pulse Identification | Amplitude Width Sampling rate | 2mV-250mV 0.1ms-2.0ms 4000Hz/Channel |
| Recorder | Recording way Recording format Paper specification | Thermal dot matrix recording 3chx4+3R, 6chx2, 6chx2+R, 12chx1, 1 minute rhythm lead record 210mmx30m, roll paper |
| Others | Screen Patient cases storage Communication interface AC power supply DC power supply Measurement and weight | 800x480 graphic 9 inch color touch LCD 400 patient cases ( Internal SD card is optional ) UAB, UART 110-230V (±10%), 50/60Hz (±1Hz), power 60VA Rated voltage/capacity: 14.4V / 4400mAh, Lithium battery Rated charging current: 1300mA (constant voltage and current) Rated charging cycle number: not less than 500 times 310mm*278mm*76mm, 3.0kgs |
12 CHANNEL ECG REPORT SAMPLE
OPTIONAL FUNCTIONS
● Use the PC ECG Management Software to manage ECG date on computer ( acquisition of real-time ECG, edit, import, save, print and transfer ECG report, VCG examination and etc. ).
● Transfer ECG data to USB disk for storage, then upload data to computer for management.
● Connect to a bar-code scanner to scan patient ID.
STANDARD ECG ACCESSORIES LIST
| Name | QTY. |
|---|---|
| * ECG Machine * Patient Cable * Limb Electrodes (4pcs./set) * Chest Electrodes (6pcs./set) * Power Cable * Grounding Cable * Paper Axis * Thermal Paper (210mmx30m) * Fuse * User Manual | 1 unit 1 pc. 1 set 1 set 1 set 1 pc. 1 set 1 pc. 2 pcs. 1 pc. |
