Product info

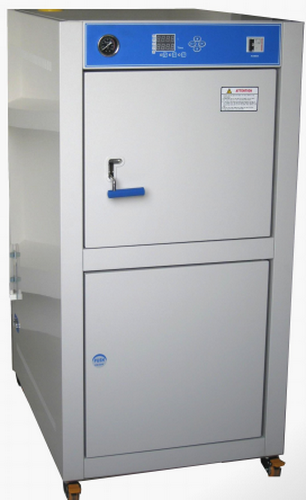

- Product name:Sterilizer
- Product code:CCL-90YDB
Packaging Specifications
- Outer Packaging Size:0.88 × 0.73 × 0.75 m
- Gross Weight:112 kg
- Net Weight:0 kg
- Volume:0.48
Description
Normal Working Condition
Normal working condition shall comply with the following conditions:
a) Environmental Temperature +5℃~+40℃;
b) Relative Humidity ≤80%RH
c) Atmospheric Pressure 70kPa~106 kpa;
f) Working Power Supply :AC 220V±20V,50Hz±1Hz
Parameter
| Parameter | |
|---|---|
| Chamber Capacity | |
| Rating working pressure | 0.22MPa |
| control way | Micro computer |
| Rating working temperature | 134℃ |
| Timer Adjust | 0~99min |
| Temp. And Pressure Control range | 115~134℃/ 0.07~0.22MPa |
| Consumption/power supply | 4000W/AC220V.50Hz |
| feature | Water lack protection, over current power cut off, safety lock system |
| Outer size | 940×690×1330mm |
| Package size | 1030×770×1460mm |
| N.W/G.W | 187KG/232KG Atten: Sterilizing pressure range: 0.07~0.22(MPa) Sterilizing temperature range: 115~134(℃) |
