Product info

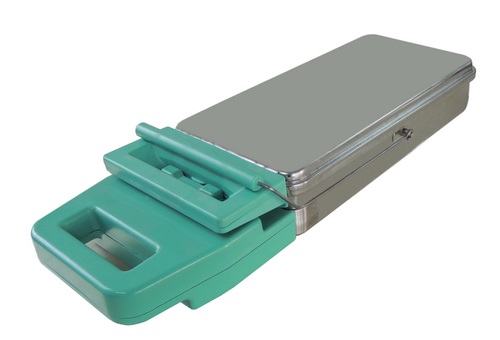

- Product name:6L Cassette Sterilizer
- Product code:CCS-60L
Packaging Specifications
- Outer Packaging Size:0.6 × 0.48 × 0.2 m
- Gross Weight:38 kg
- Net Weight:0 kg
- Volume:0.06
Description
Quick Autoclave Specifications
1. Applications
For quick sterilization of small medical instruments used in dental, ENT, and gynecology departments.
2. Features
- Fast Cycle: Shortest sterilization cycle of 6–7 minutes, reducing instrument exposure to high-temperature steam to extend service life.
- Programmable Controls: Three push buttons for different sterilization programs, with freely adjustable time and temperature.
- Safety Alarms: Alerts for unqualified water quality and low water levels; stops the cycle and displays/prints faults for low temperature or pressure.
- Compact & Lightweight: Easy to operate; the cassette also serves as a temporary storage container for instruments.
3. Working Principle
After selecting a sterilization program, the steam generator heats to the optimal temperature. Distilled water is pumped into the generator and immediately converted to steam, which is injected into the cassette holding contaminated instruments. The steam removes cold air from the cassette, completing the sterilization process.
4. Technical Parameters
表格
| Parameter | Specification |
|---|---|
| External Dimensions (L×W×H) | 580 × 460 × 190 mm |
| Cassette External Size | 570 × 196 × 80 mm |
| Cassette Internal Size | 480 × 180 × 78 mm |
| Cassette Volume | 6.0 L |
| Reservoir Volume | 3.4 L |
| Max Steam Temperature | 138°C |
| Electrical Rating | 110/220V AC ±10%, 60/50Hz, 6.3A |
| Weight | 37 kg |
Printer Specifications
- Type: Thermal
- Paper Roll: 57 mm width, 48 mm diameter (≈180 cycles per roll)
- Print Speed: 5 mm/s
