Product info
- Product name:High-frequency digital mobile shadow enhancement C-arm X-ray machine (6kw, 12kw, 16kw optional)
- Product code:CCX-7000
Packaging Specifications
- Outer Packaging Size:2.9 × 1.5 × 1.6 m
- Gross Weight:820 kg
- Net Weight:570 kg
- Volume:6.96
Description

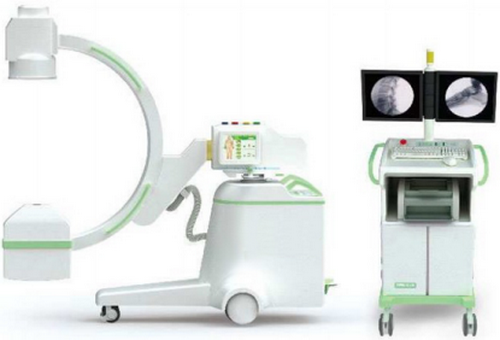

CCX-7000 High-Frequency Digital Mobile Shadow Enhancement C-arm X-ray Machine
Core Overview
CCX-7000 is a high-performance high-frequency digital mobile C-arm X-ray system designed for precise clinical diagnosis and interventional surgeries, with the core advantages of low radiation, high-definition imaging, intelligent operation and strong compatibility. It is equipped with a high-power high-frequency inverter power supply (6kW/12kW/16kW optional), large thermal capacity X-ray tube and perfect digital image chain, supporting multiple fluoroscopy modes and digital spot imaging. The four-dimensional motorized movement design, dual rotatable flat-screen monitors and professional workstation enable efficient and accurate positioning and diagnosis, making it a reliable partner in the operating room for a wide range of surgeries in digestive department, gynecology and other fields.
Key Technical Specifications
1. Power Supply & Exposure Performance (Two Configurations)
表格
| Configuration Item | 12kW Version | 16kW Version |
|---|---|---|
| High Frequency Inverter Power Supply | Output power 12kW, inverter frequency 60kHz | Output power 16kW, inverter frequency 60kHz |
| Automatic/Manual Continuous Fluoroscopy | Tube voltage 40kV~125kV (continuous adjustment), tube current 0.3mA-4mA (continuous adjustment) | Tube voltage 40kV~125kV (continuous adjustment), tube current 0.3mA-4mA (continuous adjustment) |
| Automatic/Manual Intensifying Fluoroscopy | Tube voltage 40kV-125kV (continuous adjustment), tube current 0.3mA-8mA (continuous adjustment) | Tube voltage 40kV-125kV (continuous adjustment), tube current 0.3mA-8mA (continuous adjustment) |
| Automatic/Manual Pulse Fluoroscopy | Tube voltage 40kV-125kV (continuous adjustment), tube current 0.3mA-30mA (continuous adjustment); pulse frequency 0.1-10 frame/s (continuous adjustment) | Tube voltage 40kV-125kV (continuous adjustment), tube current 0.3mA-30mA (continuous adjustment); pulse frequency 0.1-10 frame/s (continuous adjustment) |
| DSI Digital Spot Film | 0.1-10 frame/s (freely selectable) | 0.1-10 frame/s (freely selectable) |
| Radiography | Tube voltage 40kV~125kV, tube current 160mA | Tube voltage 40kV-125kV, tube current 200mA |
| X-ray Tube (High-Frequency Special) | Rotary anode focus 0.3/0.6mm; anode thermal capacity 212kJ | Rotary anode focus 0.3/0.6mm; anode thermal capacity 212kJ |
2. Core Structural & Functional Configuration
- Mechanical Movement: Four-dimensional motorized movement (360° motorized rotation, motorized horizontal stretch, motorized up/down movement, motorized orbital slipping), enabling easy and accurate positioning.
- Monitor System: Double rotatable flat-screen monitors on the trolley, allowing clear visualization of tiny anatomical details at any angle.
- C-arm Design: Wide arc opening and sufficient depth, ensuring precise alignment with minimal interference to the operating area.
- Control System: Dual hand controllers (one on C-arm stand for mechanical and collimator movement control; one on workstation trolley for fluoroscopy mode selection and parameter setting), realizing convenient operation at any position.
Core Product Advantages

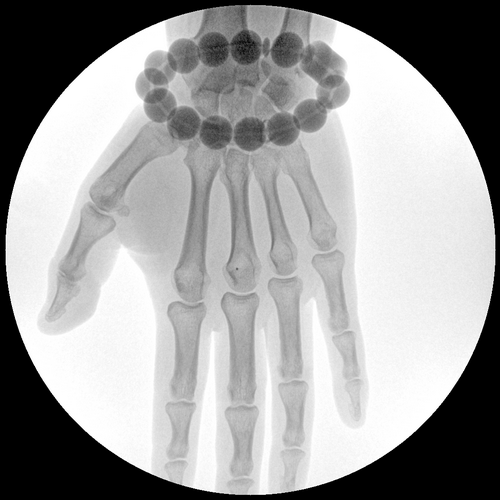

- Superior Imaging Quality & Low Radiation: Equipped with a high-frequency generator and large thermal capacity X-ray tube (>1000kJ) with advanced heat dissipation technology, ensuring clear and stable images even during long-time use. Professional image storage system (supports single/continuous image storage) reduces repeated exposure, minimizing X-ray radiation for patients and medical staff. Perfect digital image chain and high-definition monitors capture the smallest anatomical details, improving diagnostic accuracy.
- Intelligent & Efficient Operation: Four-dimensional motorized movement design provides a comfortable operating environment, reducing the workload of medical staff and improving positioning efficiency. Dual hand controllers and intelligent control system make parameter setting and mode switching flexible and convenient, keeping exposure control accessible at all times. Double rotatable flat-screen monitors adapt to multi-angle observation needs during surgery, enhancing operational convenience.
- Strong Network Compatibility: Professional imaging workstation with work-list registration function, seamlessly integrating into the hospital environment. Standard DICOM 3.0 network interface, supporting integration with PACS/RIS systems for image transmission and management. CD burning function enables easy image transfer and archiving.
Core Clinical Applications
Suitable for a wide range of surgical and clinical diagnosis scenarios, including spinal surgery, orthopedic surgery, digestive department, gynecology and other fields, providing reliable imaging support for interventional surgeries, minimally invasive treatments and precise diagnosis. It is widely applicable in operating rooms of medical institutions at all levels, meeting the high-demand imaging needs of complex surgeries.
