Product info

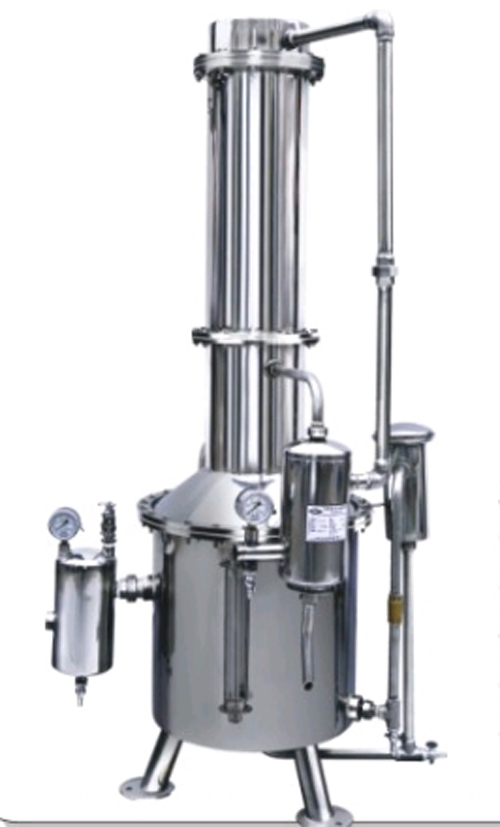

- Product name:50L 100L 200L 400L 600L Water Distiller
- Product code:CCLTZ
Packaging Specifications
- Outer Packaging Size:0.75 × 0.65 × 1.45 m
- Gross Weight:88 kg
- Net Weight:0 kg
- Volume:0.71
Description
Distilled Water Machine Specifications
Key Features
- Material: All products are made from stainless steel.
- Heating: Uses high-temperature steam for energy efficiency, and recycles steam condensation water.
- Piping: Made of seamless stainless steel pipes for optimal heat efficiency.
- Condenser: Constructed from seamless stainless steel pipes, providing excellent cooling effects and high water production capacity.
- Quality Control: Incorporates percolation, ammonia pushing, and water/steam separation during distillation to ensure product quality.
Technical Parameters
| Model | Water Discharge | Steam Supply Pressure | Cooling Water Pressure | Steam Consumption | Water Consumption Rate |
|---|---|---|---|---|---|
| CCLTZ50 | ≥50L/H | 0.4MPa | 0.2MPa | 1:01 | ≤1:14 |
| CCLTZ100 | ≥100L/H | 0.4MPa | 0.2MPa | 1:01 | ≤1:14 |
| CCLTZ200 | ≥200L/H | 0.4MPa | 0.2MPa | 1:01 | ≤1:14 |
| CCLTZ400 | ≥400L/H | 0.4MPa | 0.2MPa | 1:01 | ≤1:14 |
| CCLTZ600 | ≥600L/H | 0.4MPa | 0.2MPa | 1:01 | ≤1:14 |
Note: The packaging details provided are only for the CCLTZ50 model. For information on other models, please inquire.
