Product info

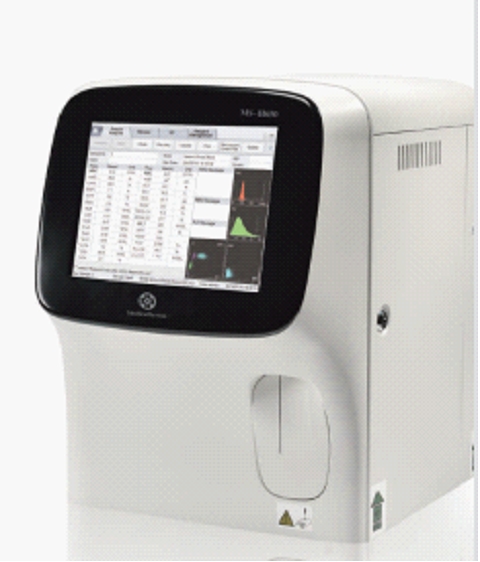

- Product name:5-parts automatic blood cell analyzer
- Product code:CCL650
Packaging Specifications
- Outer Packaging Size:0.63 × 0.57 × 0.6 m
- Gross Weight:58 kg
- Net Weight:0 kg
- Volume:0.22
Core Parameters
- Throughput: 60 Samples / hour
- Reportable Parameters: 23 Reportable Parameters CBC: Whole Blood Mode: WBC, Lym#, Neu#, Mon#, Eos#, Bas#, Lym%, Neu%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT.
- Sample Volume: 15yL, 15yL, 20uL
- Display: 10.4” Intuitive color touch screen
- Dimension: 360mm(L) x 470mm(W) x 430mm(H)
- Weight: 28KG
- Power requirement: A.C100V~240V (50/60Hz), <250VA
- Data Storage Capacity: Up to 50,000 results including numeric and graphical data
- Multi-Language: Chinese, English available
- Principles: Tri-angle Laser Scatter, Flow Cytometry, Chemical Dye method for 5-part differential analysis and WBC counting
- Interface: 4 USB ports, 1 LAN connection

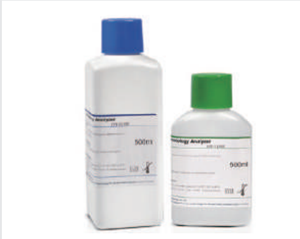

- Reagent: DIL-C Diluent, LYC-1 Lyse , LYC-2 Lyse , CLE-P Cleanser
Description
Specifications
Characters
23 reportable and 4 research parameters CBC
3 histograms (WBC, RBC, PLT) and 3 scattergrams for WBC differential and 1 dedicated to Basophil measurement
User-friendly interface and easy operation with intuitive color touch screen
Innovative technology incl. Tri-angle Laser Scatter, Flow Cytometry, Chemical Dye
Open Tube Sampling Mode for whole blood, capillary, pre-diluted
Minimized sample volume to 15uL
Technical Specification
Principles:
Tri-angle Laser Scatter, Flow Cytometry, Chemical Dye method for 5-part differential analysis and WBC counting
Electrical Impedance method for RBC & PLT counting
Non-cyanide method for hemoglobin testing
Data Storage Capacity:
Up to 50,000 results including numeric and graphical data
Communication Interface:
LAN port support HL7 protocol
4 USB ports, 1 LAN connection
Support Bi-directional LIS
Parameters:
23 Reportable Parameters CBC:
Whole Blood Mode: WBC, Lym#, Neu#, Mon#, Eos#, Bas#, Lym%, Neu%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT
4 Research Parameters: ALY#, LIC#, ALY%, LIC%
3 Histograms: WBC, RBC, PLT
3 Scattergrams for WBC Differential and 1 for Basophil measurement
Printout:
External laser printer/ Inkjet printer, various printout formats and customized formats
Sample Volume:
Whole blood mode: 15uL
Capillary mode: 15uL
Pre-diluted mode: 20uL
Throughput:
60 Samples / hour
Display:
10.4" Intuitive color touch screen
Multi-Language:
Chinese, English available
Spanish, Portuguese, Russia, French under development
Dimension:
360mm(L) x 470mm(W) x 430mm(H)
Weight:
28KG
Operating Environment:
Temperature: 15-30℃
Humidity: 20%~85%
Air pressure: 70kPa-106kPa
Power requirement:
AC100V-240V (50/60HZ), 5250VA
Product Feature & Specification
Throughput: 60 Samples/hour, Intelligent Flagging for Pathological Samples
10.4 inch large TFT touch screen with user-friendly software
Reagent: DIL-C Diluent, LYC-1 Lyse, LYC-2 Lyse, CLE-P Cleanser
Only 2 Reagent (Dilute, Lyse) for routine testing, 1 Reagent (Cleanser) for regular maintenance
Result Performance:
| Parameter | Linearity | Precision(Cv%) |
|---|---|---|
| WBC | 0~300 x 10/L | ≤2.0%(4.0~15.0) |
| RBC | 0~8.5x 1012/L | ≤1.5%(3.5~6.0) |
| HGB | 0~250g/L | ≤1.5%(110~180) |
| HCT | 0~67% | - |
| PLT | 0~3000 x 10⁹/L | ≤4.0%(150~500) |
| MCV | - | ≤1.0%(70~120)fL Carryover: WBC ≤0.5% RBC ≤0.5% HGB ≤0.5% PLT ≤1.0% Advanced Features: Automatic floating discriminators for WBC, RBC, PLT counting Digital Sheath-Flow Auto sample clot detection and unclotting function Good reproducibility A LAN connection and 4 USB ports for mouse, keyboard, barcode scanner and data transmission User-friendly interface and comprehensive data management The Real Dual-Optical counting channels enable the DIFF and BASO to be analyzed more precisely and efficiently |
