Product info

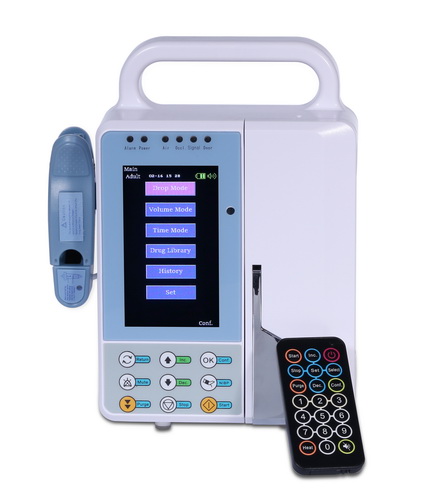

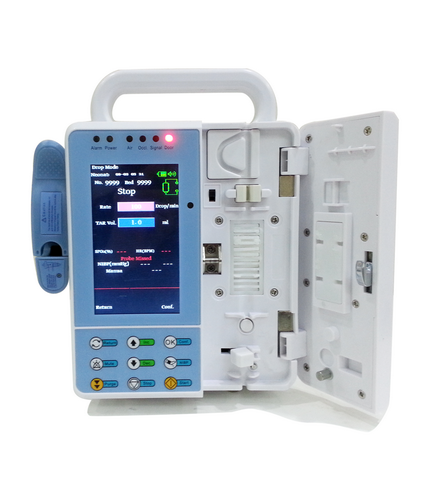

- Product name:4.3”color LCD screen Infusion Pump with remote control
- Product code:CCS-900
Packaging Specifications
- Outer Packaging Size:0.3 × 0.3 × 0.4 m
- Gross Weight:4 kg
- Net Weight:0 kg
- Volume:0.04
Description
Multifunctional Infusion Pump Overview
This advanced infusion pump combines standard infusion functions with optional NIBP and SpO₂ monitoring, offering enhanced patient safety and convenience.
✨ Features

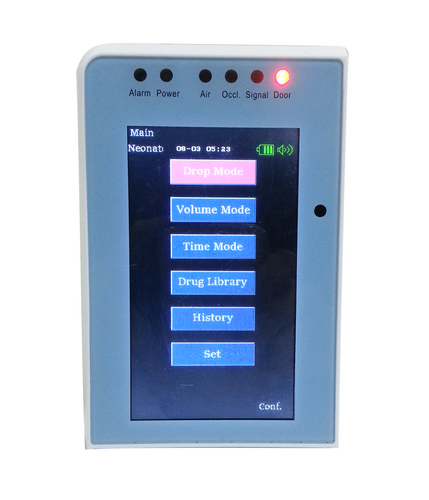

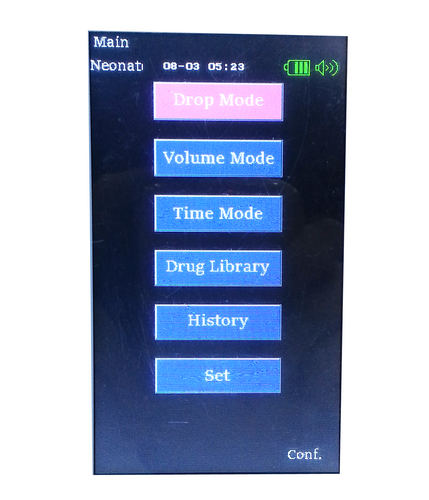

- Display: 4.3" color TFT LCD screen (LED backlight), resolution 272×480
- Working modes: 3 modes: Rate / Time / Volume
- Drug library: Contains 210 kinds of medicines
- History records: Stores up to 1500 records
- Heating function: Suitable for winter infusion or when medication temperature control is required
- Multi-language support: Multi-language display
- Safety alarms: A variety of visible and audible alarms to enhance infusion safety

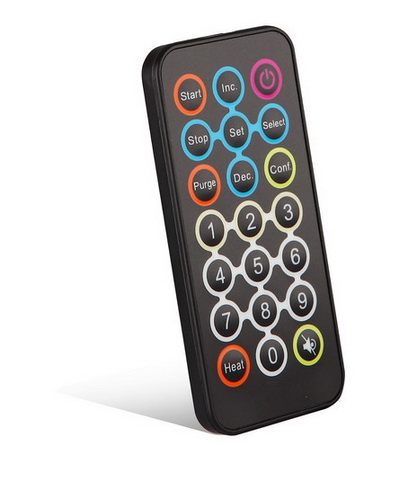

- Standard configuration: Drug library, history record, heating function, drip detector, remote control
- Optional configuration: SpO₂, NIBP (vital sign monitoring)
📋 Technical Specifications
Infusion Function
| Parameter | Specification |
|---|---|
| Adjustable drop rate range | 1–400 drops/min (1 drop/min step) |
| Adjustable flow rate range | 1–1200 ml/h (0.1 ml/h step) |
| Purge rate | 800 ml/h |
| KVO rate | 1 ml/h (flow < 100 ml/h)2 ml/h (100–300 ml/h)3 ml/h (> 300 ml/h) |
| Infusion volume range | 1–9999.9 ml (0.1 ml step) |
| Maximum accumulated volume | 9999.9 ml (0.1 ml step) |
| Infusion time range | 1–9999 min (1 min step) |
| Infusion accuracy | Within ±3% (with calibrated high-quality IV set)Mechanical precision: within ±2% |
| Occlusion alarm threshold | High: 800 mmHg ± 200 mmHg (106.7 kPa ± 26.7 kPa)Medium: 500 mmHg ± 100 mmHg (66.7 kPa ± 13.3 kPa)Low: 300 mmHg ± 100 mmHg (40.7 kPa ± 13.3 kPa) |
| Alarms | Infusion complete, empty, faulty signal, misoperation, occlusion, door open, air bubble, low battery, setting error, AC power off, idle |
Optional NIBP Module
| Parameter | Specification |
|---|---|
| Accuracy | Average deviation: ≤ ±5 mmHgStandard deviation: ≤ 8 mmHg |
| Adult range | SYS: 40–280 mmHgMEAN: 20–240 mmHgDIA: 10–220 mmHg |
| Pediatric range | SYS: 40–220 mmHgMEAN: 20–170 mmHgDIA: 10–160 mmHg |
| Neonate range | SYS: 40–135 mmHgMEAN: 20–110 mmHgDIA: 10–100 mmHg |
| Static pressure | Range: 0–300 mmHgDeviation: 3 mmHg |
| Resolution | 1 mmHg |
| Measurement modes | Manual / automatic cycleOptional interval: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90 minFast: continuous measurement (5 min interval) |
| Alarms | High pressure: > 90–160 mmHgLow pressure: < 50–90 mmHgAccuracy: ±5% |
| Overpressure protection | Adult: 280 mmHg ± 10 mmHgPediatric: 237 mmHg ± 3 mmHgNeonate: 147 mmHg ± 3 mmHg |
Optional SpO₂ Module
| Parameter | Specification |
|---|---|
| Range | 0–100% |
| Resolution | 1% |
| Accuracy | 70–100%: ±2%0–69%: undefined |
| Alarms | Upper limit: 100%Lower limit: 90%Accuracy: 3%Time accuracy: 2s |
| Pulse rate | Range: 20–300 bpmResolution: 1 bpmAccuracy: ±3 bpmAlarms: upper 120 bpm, lower 50 bpm (default) |
| Sensor details | Type: Finger clipWire length: 3000 mm (±5%)Contact material: Silicone |
Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 188 mm (L) × 198 mm (W) × 228 mm (H) |
| Net weight | 2.5 kg |
