Product info

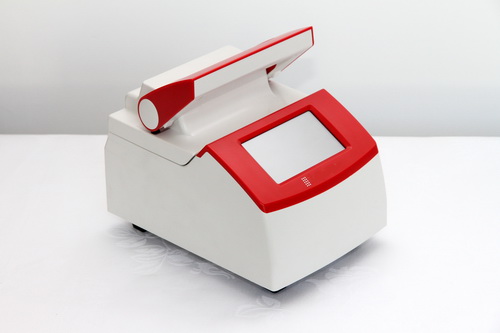

- Product name:4.3 inch Touch Screen 32wells×0.2ml Thermal Cycler
- Product code:CCL-Mini3220
Packaging Specifications
- Outer Packaging Size:0.35 × 0.3 × 0.26 m
- Gross Weight:5 kg
- Net Weight:0 kg
- Volume:0.03
Description
| Model | Mini 3220 | |
| Sample Block | 32wells×0.2ml | |
| Tube Type | Accommodates 0.2 ml tubes or strip of 8 tubes | |
| Peltier Technology | New generation Peltier-based technology | |
| Display | 4.3”TFT color touch screen | |
| Language | English | |
| Communication Port | 1 USB | |
| Venting System | Front air in and back air out,two cyclers can be placed side by side | |
| Temperature | |
| Block Temperature Range | 0℃～99.9℃ |
| Max. Heating Rate | 5℃/s |
| Max. Cooling Rate | 4℃/s |
| Temperature Uniformity | ±0.25℃ |
| Temperature Accuracy | ±0.25℃ |
| Display Resolution | 0.1℃ |
| Mode of Temperature Control | Sim-tube & Block mode |
| Ramping Rate Adjustable | Yes |
| Lid Open Method | New TOP-OPEN technology realizes open and lift in one step |
| Software | |
| Max. No. of programs | ≥100 user protocols on board |
| Time & Temp. Increment/Decrement | Yes , available for Long PCR & Touchdown PCR |
| Auto Pause / Auto Restart | Yes |
| Hold at 4℃ | Yes, an Infinite incubation time at low temperature for overnight working |
| Running Report | Yes, Provide precise information for the whole experiment |
| Other Features | |
| Power | Global switch power supply: 85V ~ 265V, 50--60Hz Max. 160W |
| Approvals | IOS 9001:2000, CE, RoHS |
| Dimension（L×W×H） | 232×182×157mm |
| Net Weight | 2.9kgs |
