Description

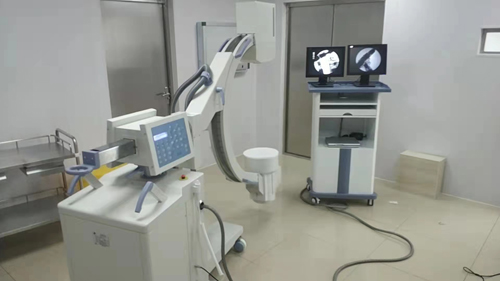

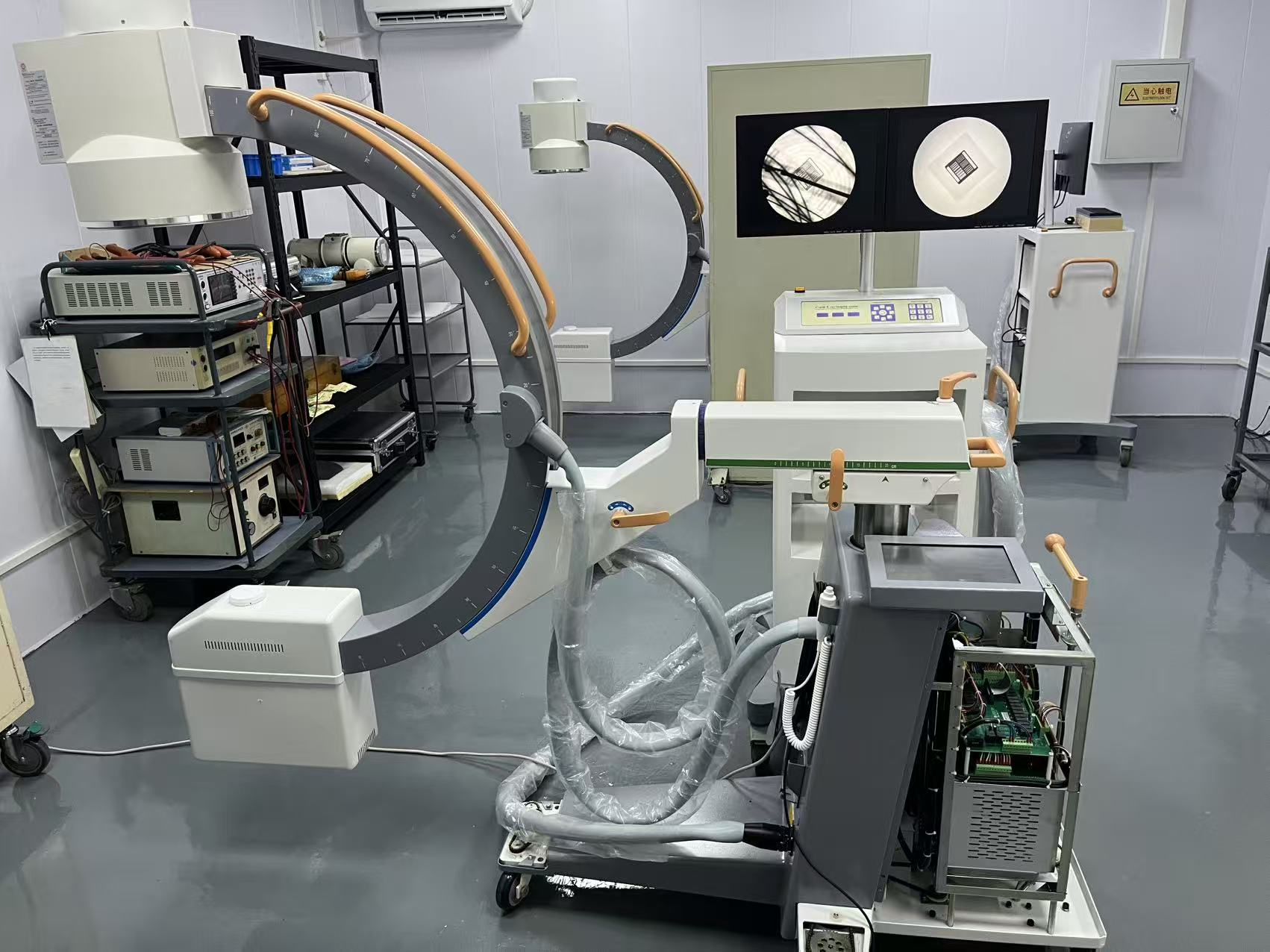

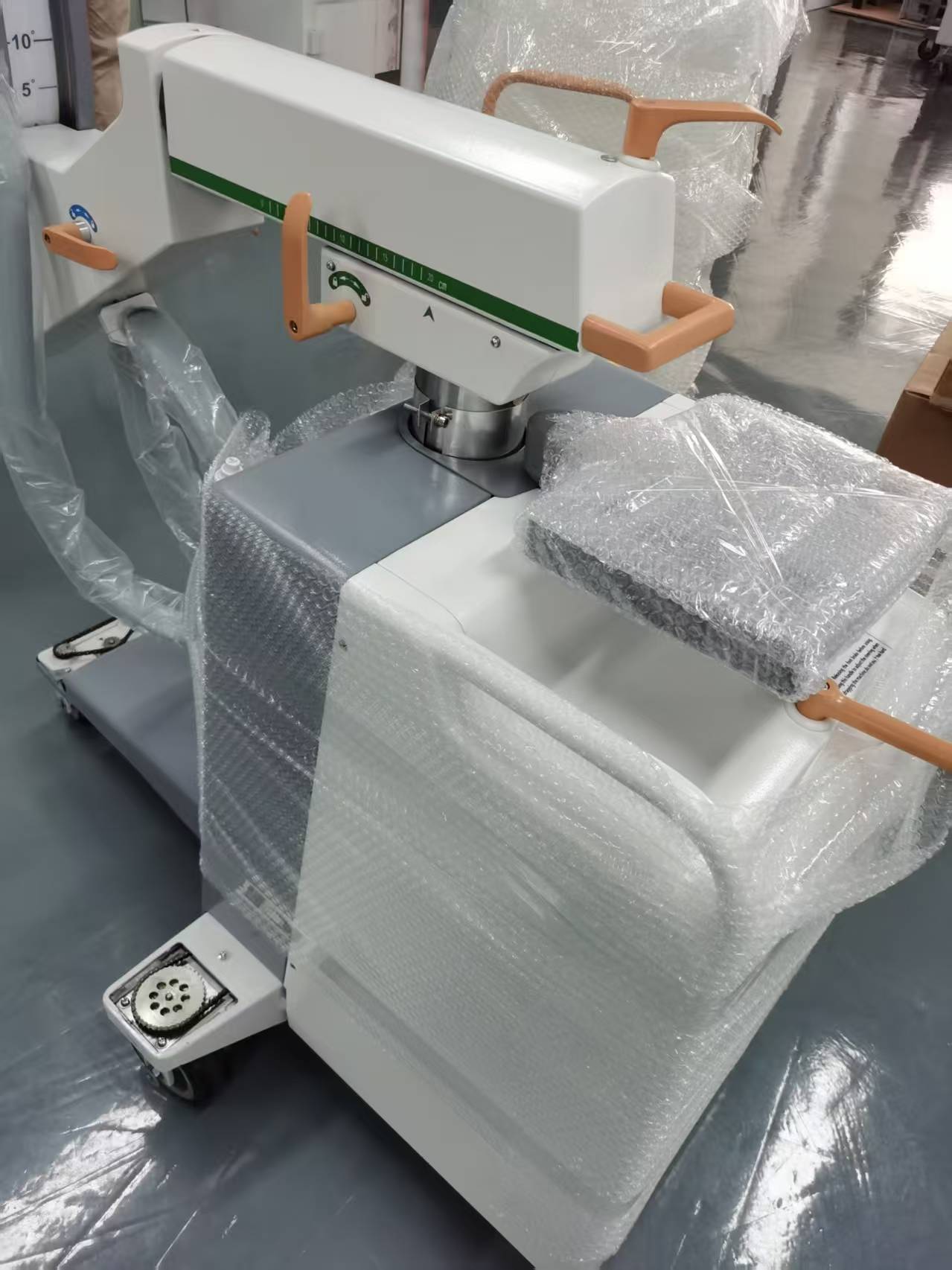

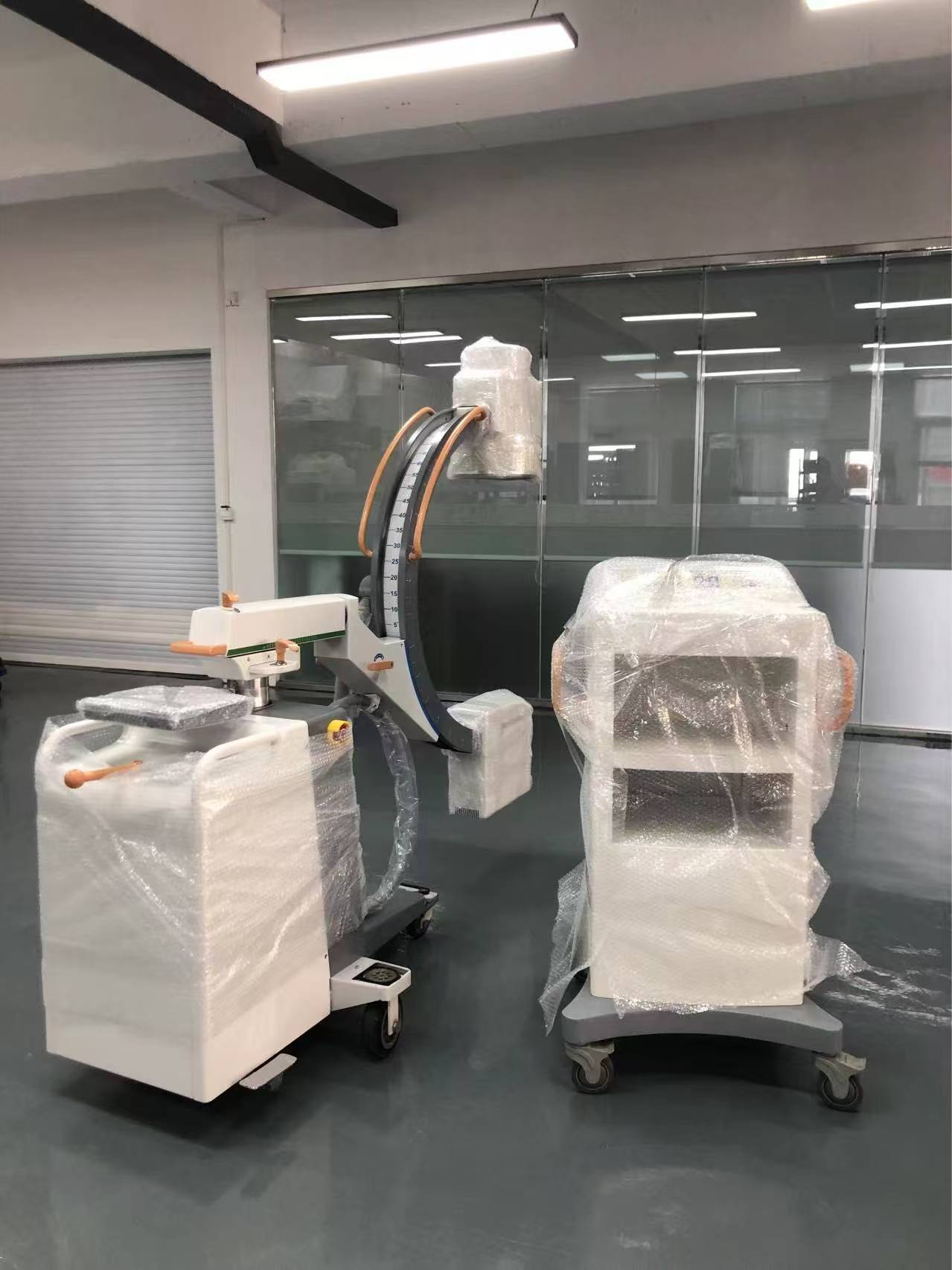

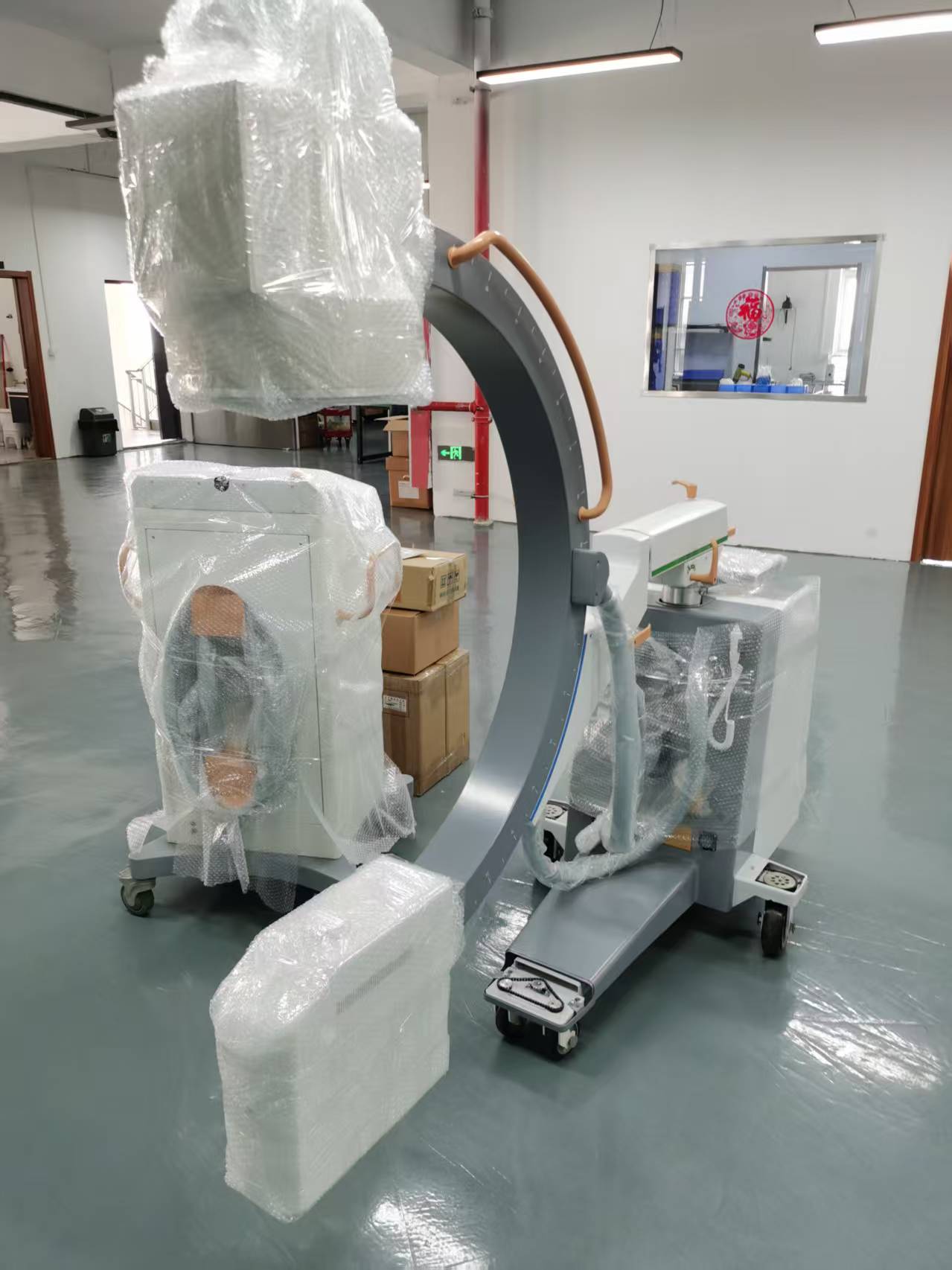

3.5Kw  High frequency Mobile C-arm X-ray Imaging

Advantages

more than 20 yeas R&D, the main factory in China for high frequency C-arm X-ray system, most stable quality

most competitive price in China, your most reliable partner

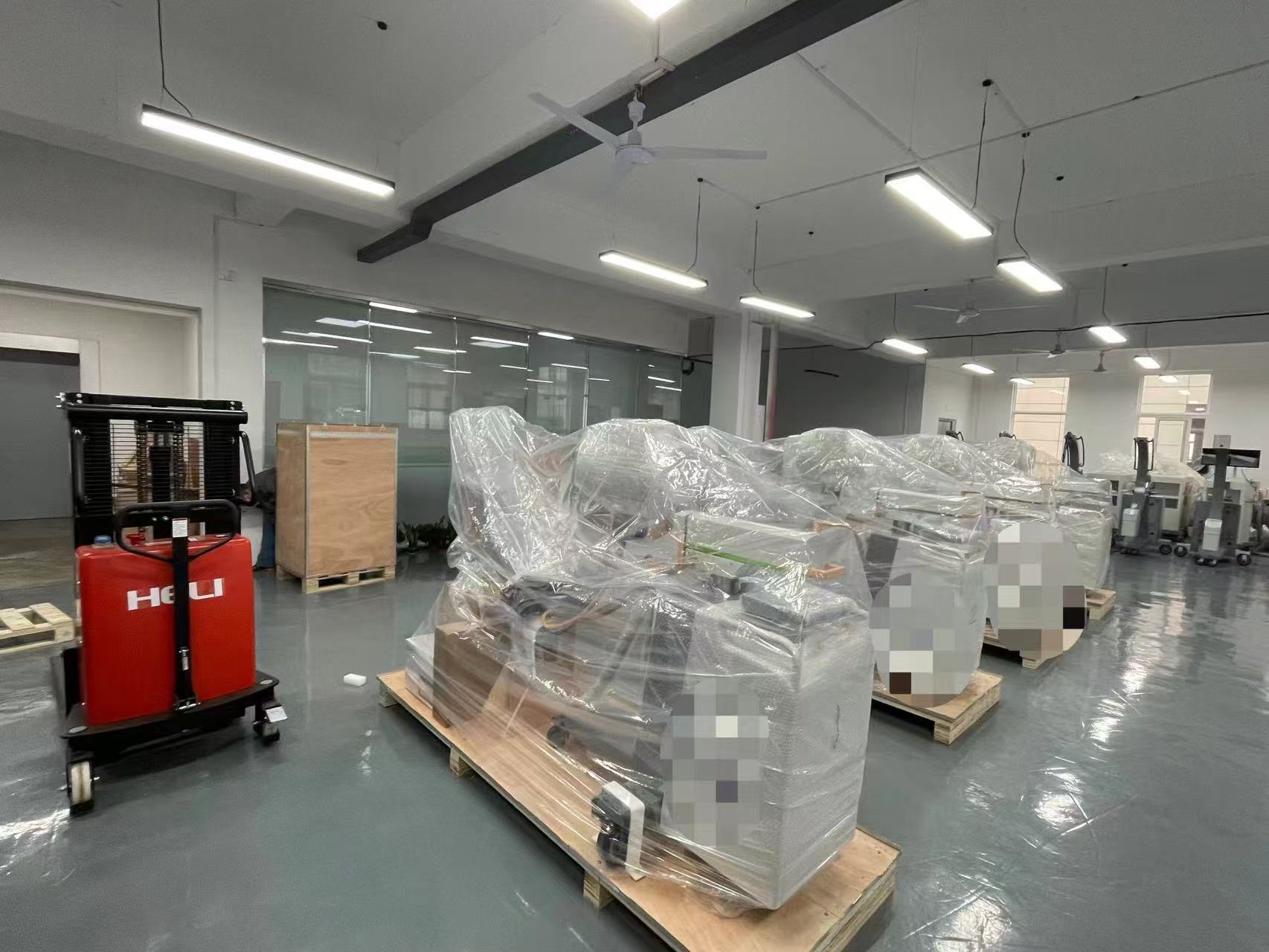

large production capacity, fast delivery time

Application

Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.

General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty.

Key features

1) With HF & HV generator, inverter, and High quality image intensifier, the X-ray generator can work stably.It also reduces the damage for the doctors caused by radiation.

2) 10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve

the efficiency of fault diagnosis.

3) Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.

4) With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.

5) Equipped with unique block line wheels, it can avoid accident when the machine moves.

6) Large free space in arc: the space can reach 800mm,which is convenient for operation.

7) 9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.

8) CCD camera with rotation function:range of camera rotation:360°.

9) Original Korean linear slide rail can make the the movement of the machine flexibly.

10) Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

Main specification

HF generator

110KV,3.5KW,40KHz

Fluoroscopy mode

Fluoroscopy mode40~110kv0.5~5mA

(KV manual and automatic);

Pulsd fluoroscopy 40~110kv  0,5-5mA

Boost fluoroscopy 40~110kV 5~10mA;

Photography 40~110kV  1~250mAs

X- ray tube

Dual-focus Rotating anode:0.6mm/1.5mm

Image intensifier

Three fields of vision 9, 6, 4.5

CCD camera

0.47 million output pixels, 360° rotation

Image system

Recursive Noise Reduction

Frame freezing

Multi frame image storage

Image conversing and rotating

Screen display with image comparison

Mechanical motion specifications

Verticaltravel:0-400mm

Horizontaltravel:0~200mm

Horizontal axis:±180°

C-arm dimension

Distance of focal spot to image generator(SID):1000mm

Depth in arm≥650mm                                                 Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm

Standard configuration

High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

image processor: 1set

15” LCD high definition display: 1 set

Standard Configuration

1.With HF & HV generator,inverter,and High quality image intensifier, the x ray

generator can work stably. It also reduces the damage for the doctors caused by radiation.

2.10.4"LCD friendly interface control board: easy operation and can be rotated to 180°

(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be

oxidized Besides, the trouble will be displayed in English, which will improve the efficiency

of fault diagnosis.

3.With a steering handle, it can adjust the direction quickly when moving.And parallel

movement function is also available.

4.Equipped with unique block line wheels, it can avoid accident when the machine moves.

5. Image intensifier: 9"/6"/4.5" three fields of vision:it facilitates diagnosis of

partial enlargement.

6.Original Korean linear slide rail can make the movement of the machine flexibly.

7.Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

8.CCD camera with rotation function:range of camera rotation:360°.

9.Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.

10.Large free space in arc: the space can reach 800mm,which is convenient for operation.

Delivery term

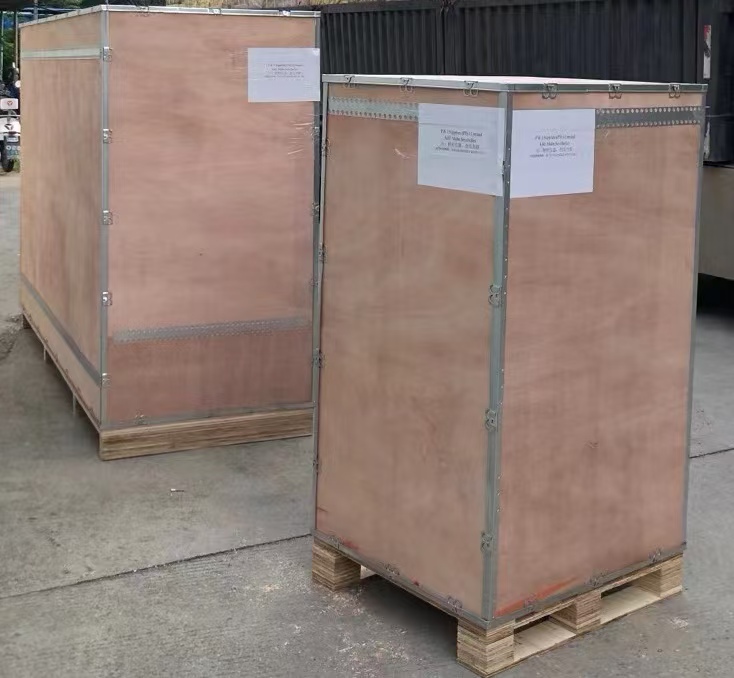

Dimension: Two wooden cases: A) 245×85×168cm B) 81×71×142cm, total: 4.32CBM, GW:535KG

Delivery time: about 10 days

Warranty time: 1 year

configuration part list

1.3.5KW high frequency X-ray generator, X-ray tube 1 set

2.9’’,6’’, 4.5’’ three fields of vision image intensifier 1 set

3.795×596 CCD camera, 360° rotation 1 set

4.10.4’’ touch screen interface control board  1 set

5.Grid (JPI Korea)1 set

6Japanese Omron Relay 1 set

7. Korean imported linear slide rail  1 set

8.15” LCD high definition display 1 set

9.Remote control unit 1 set
