Description
Factory Display

Specifications

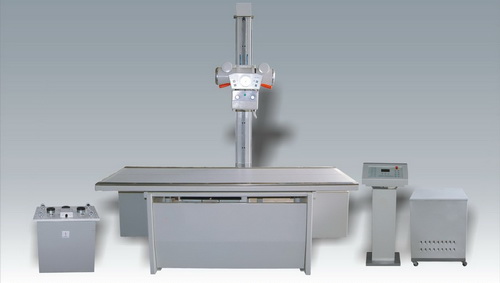

MA: 300ma Type: Stationary

Main features:
1. Single bed with single bulb
2. High visual and operational Console with tube voltage, tube current, and photographic time displayed on the LCD monitor
3. Prestore 8 kinds of photograph parameters and select, modify, store the parameters under condition of choice
4. Auto power and voltage control, kV continuous adjustable ,auto Fault Alarm
5. Premier high voltage with high power SCR zero control circuit
6. X-ray subassemblies is equipped with Tangential-pipe kits
7. Photograph bed, column, vibration filter limiter intergrated equipment without necessity of up-and-down tunnel
8.Photography bed can be moved both laterally and vertically, column can turn 4*90°
9. Function of load chains, exposure time control, start and stop rotating mode, Preheat filament, subassembly temperature control, etc.

Specifications:

Item	Content	Index
Demand of power supply	Voltage frequency	380V/220V±10 50Hz±0.5Hz
	Internal resistance	380V:0.75Ω, 220V:0.25Ω
Power supply	Adjustable range	380V±10at380V; 220V±10at220V being adjustable continuously
Radiographic	Voltage	50-120kV
	Current	Small focus 50mA,100mA Big focus 100,200,300mA
	Time	0.04-6.3s
High-voltage generator	Capacity	20kVA(instantaneous)
	Max DC output voltage	120kV
	Max DC output current	300mA
X-ray tube	Model	XD51-20.40/125
	Focus	Small focus:1×1mm, Big focus:2×2mm
Radiographic table	Table face(L×W×H)	2000mm×710mm×700mm
	Moving range of table face	620mm×200mm
	Ray-filter	Travel in length:500mm
		Grid density N28
		Convergence distance of 1000mm
		Grid ratio R8
Pillar of X-ray tube unit	Moving in length along radiographic table	1100mm
	Distance to ground as moving up and down (along upright post)	630mm~1750mm
	Rotary around the center of cross arm	±180º
	Rotary around the shaft line of X-ray annular tubes	-10º~60º~+120º
Max size of cassette for radiography	356mm×432mm(14"×17")
