Product info

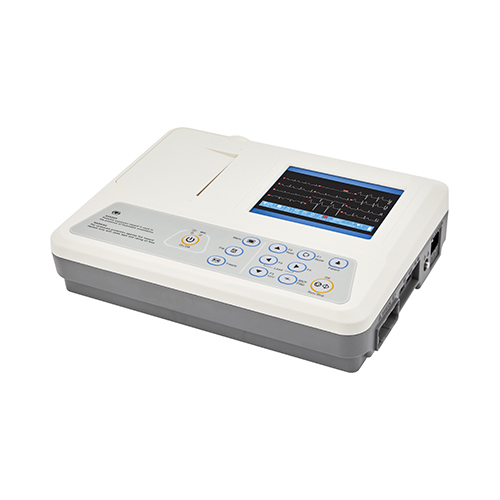

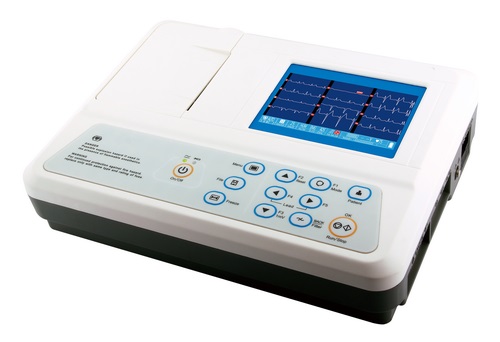

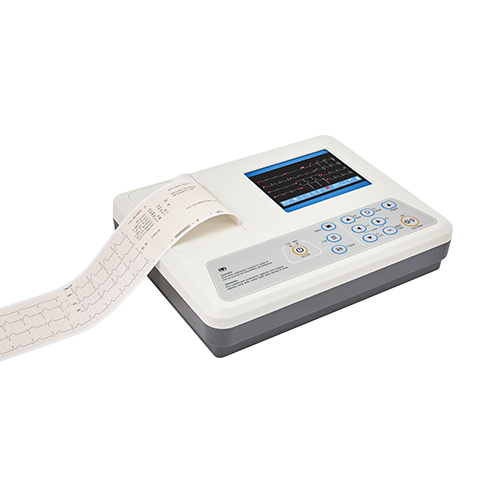

- Product name：3 three channel 12 leads ECG EKG Monitor machine
- Product code：CCE-3303G
Packaging Specifications
- Outer Packaging Size：0.39 × 0.34 × 0.21 m
- Gross Weight：4.1 kg
- Net Weight：3.4 kg
- Volume：0.03
Description
BRIEF INTRODUCTION
The CCE-3303G is a reliable and classical 3 channel electrocardiograph, helping clinicians make fast and accurate ECG diagnosis. It can be widely used in various medical institutions or occasions. The friendly configuration and practical design provides users with very good using experience.
ADVANTAGES
- DIAGNOSIS
Fast and accurate ECG diagnosis for adult andpediatric patient.
- OPERATION
Ergonomic design, rich menu setting and good usability.
- PERFORMANCE
Stable performance, durable and reliable,with good market history.
- ANALYSIS
Auto interpretation, can analyze over 200 types of abnormal ECG.
- DATA MANAGEMENT
Practical data transmission function, external USBflash disk storage.
- POWER SUPPLY
Low-power consumption design and long batteryworking time.
PRODUCT FEATURES
Sampling and Analysis
Acquisition and record standard 12 lead ECG simultaneously. Sampling rate 32000Hz.
High accuracy digital filter system. Automatic base line adjustment.
Accurate pulse pace identification function.
Excellent auto-interpretation function can analyze over 200 types of abnormal ECG. ( Analysis data base: Minnesota Code ).
ECG Record
High resolution thermal printing system.
Four working modes: Auto, Manual, R-R, Store, to meet different clinical requirements.
Recording format: 1chx12+R, 3chx4, 3chx4+R and 1 minute of rhythm lead record.
Printing paper size: 80mmx20m, roll paper.
Patient Information and File Management
Can record detailed patient information, including name, ID, gender, age, height, weight, blood pressureand hospital name.
Can store, replay and edit 250 ECG cases with internal memory card.
Patient ECG report can be transferred to external USB disk (optional).

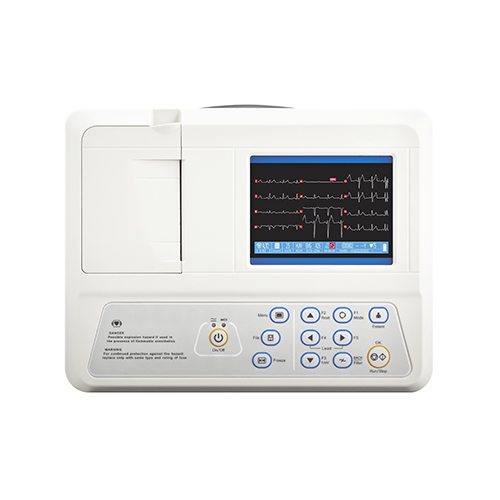

Display and Keypad
800x480 graphic, 5 inch color LCD to display detailed ECG waveform and working status ( lead waveform, patient information, sensitivity, paper speed, filter, date and time, HR., battery level, errors, and etc. )
With soft silicone keyboard to operate.
One-key operation to support fast ECG examination.
Power Supply
Rechargeable Lithium battery, 2200mAh, 14.4V, support to continuously work about 9 hours.
Low-power consumption and fast charging design, about 2.5 hours to charge full.
Automatic voltage regulation design, adapt for power supply of 110-230V, 50/60Hz.

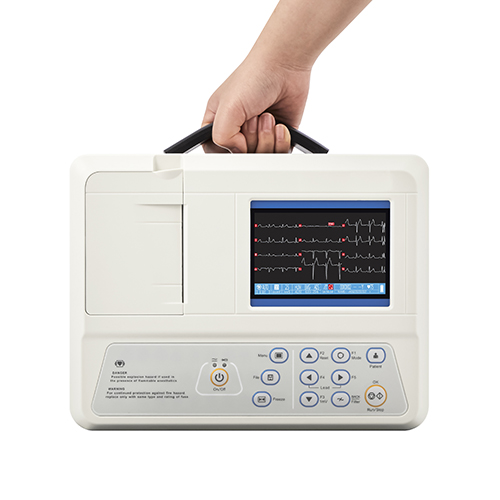

Physical Design
Compact and ergonomic design, easy to carry and operate.
Proper size and weight, very convenient for mobile diagnostics.
Measurement: 300mmx230mmx75mm, 2.8kgs.
Interface and Communication
With UART and USB communication port.
Support transferring ECG files to external USB disk for storage (optional).
Support connecting to computer to manage ECG data with PC ECG Management Software. (optional).
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS | |
| Main Unit | Lead Lead acquisition Sampling rate Working mode Filter CMRR Input circuit Input impedance Patient current leakage Frequency response Calibrating voltage Sensitivity Paper feeding speed Accuracy of data Time constant AD conversion Inter-channel interference Noise level HR detection range | Standard 12 leads ( I, II, III, aVR, aVL, aVF, V1 to V6 ) 12 leads synchronously acquisition 32000Hz MAN, AUTO, R-R, STOR AC Filter: 50Hz / 60Hz / Off EMG Filter: 25Hz / 45Hz / Off ≥120dB (with AC Filter) Floating; Protection against defibrillator effect ≥2.5MΩ (10Hz) <10μA 0.05-150Hz (-3dB） 1mV±5％ 2.5, 5, 10, 20, 40, mm/mV (±3%), Auto 6.25, 12.5, 25, 50mm/s(±3％) <±5% or <±40μV ≥3.2s 12 bits <2% <30μ Vp-p 30-300 BPM (±1BPM) |
| Packing Pulse Identification | Amplitude Width Sampling rate | 2mV-250mV 0.1ms-2.0ms 4000Hz/Channel |
| Recorder | Recording way Recording format Paper specification | Thermal dot matrix recording 1chx12+R, 3chx4, 3chx4+R, 1 minute rhythm lead record 80mmx20m, roll paper |
| Others | LCD display Patient cases storage Communication interface AC power supply DC power supply Fuse specification Measurement and weight | 800x480 graphic 5 inch color LCD 250 patient cases ( Internal SD card is optional ) USB, UART 110-230V (±10%), 50/60Hz (±1Hz), power 60VA Rated voltage/capacity: 14.4V, 2200mAh, Lithium battery Rated charging current: 1300mA Rated charging cycle number: not less than 500 times TZAH/250W, ф5X20 300mm*230mm*75mm, 2.8kgs |

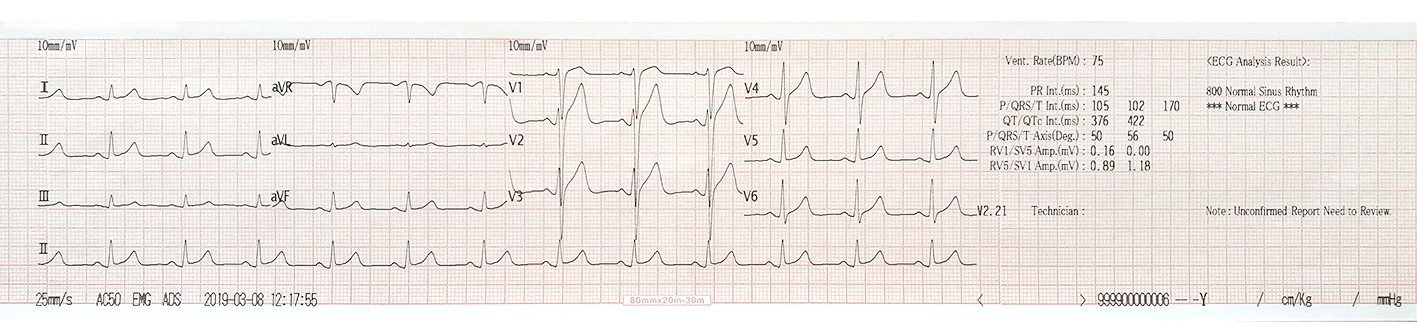

3 CHANNEL ECG REPORT SAMPLE
OPTIONAL FUNCTIONS

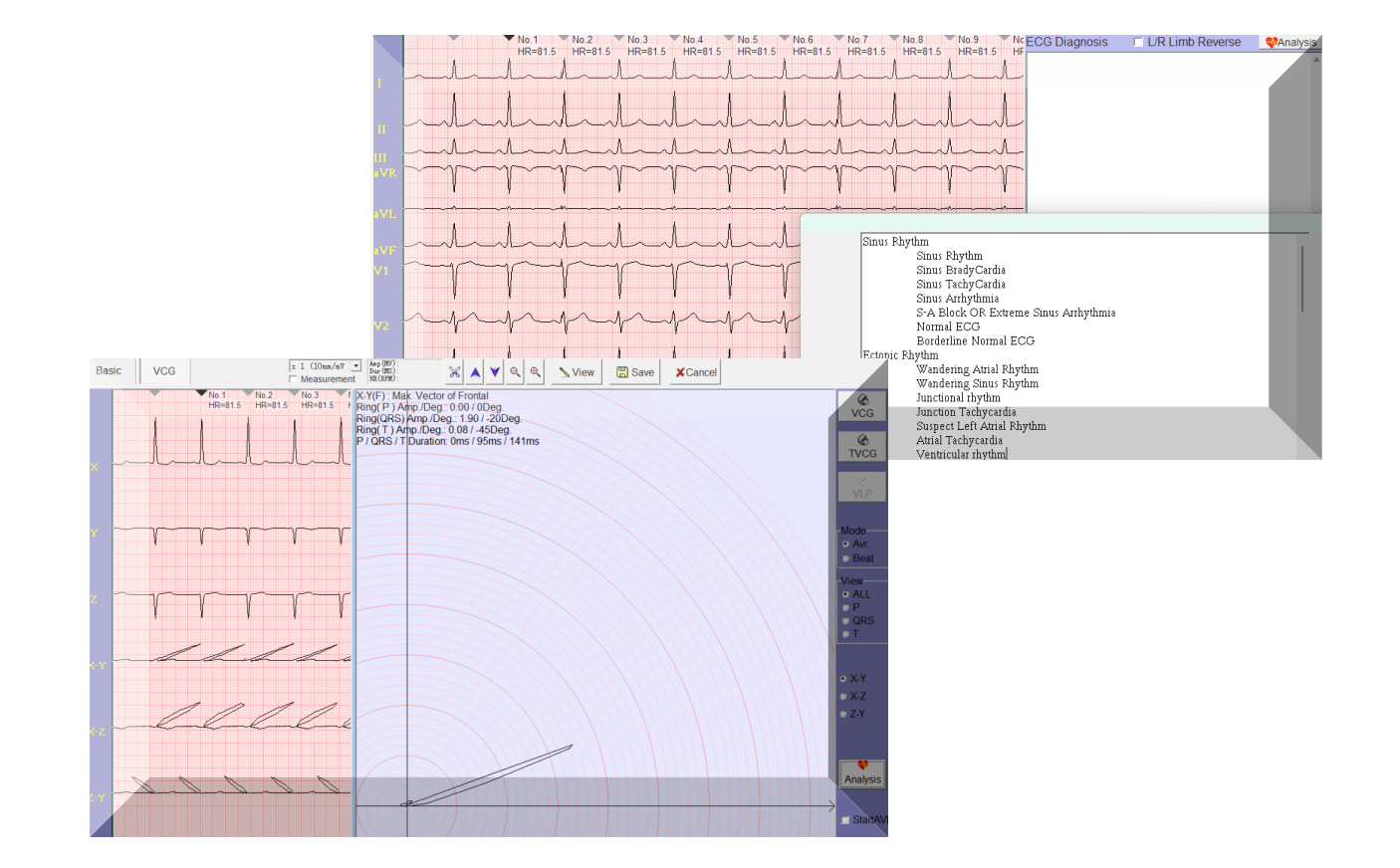

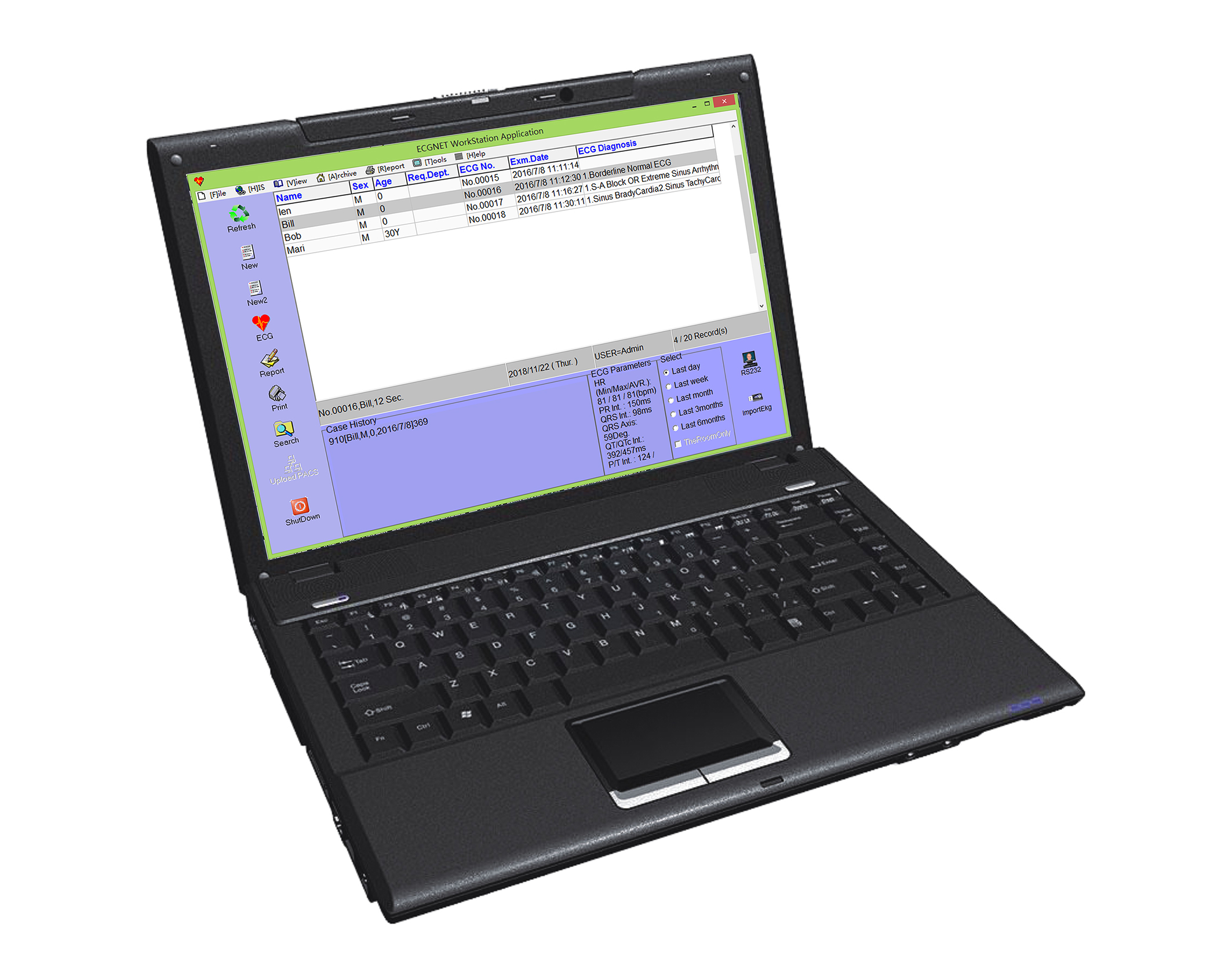

● Use the PC ECG Management Software to manage ECG date on computer ( acquisition of real-time ECG, edit, import, save, print and transfer ECG report, VCG examination and etc. ).
● Transfer ECG data to USB disk for storage, then upload data to computer for management.
● Connect to a bar-code scanner to scan patient ID.

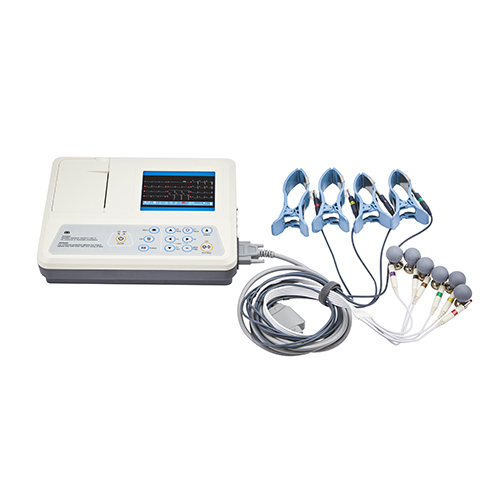

STANDARD ECG ACCESSORIES AND PACKAGE LIST
| Name | QTY. |
|---|---|
| * ECG Machine * Patient Cable * Limb Electrodes (4pcs./set) * Chest Electrodes (6pcs./set) * Power Cable * Grounding Cable * Paper Axis * Thermal Paper (80mmx20m) * Fuse * User Manual | 1 unit 1 pc. 1 set 1 set 1 set 1 pc. 1 set 1 pc. 2 pcs. 1 pc. |
