Product info

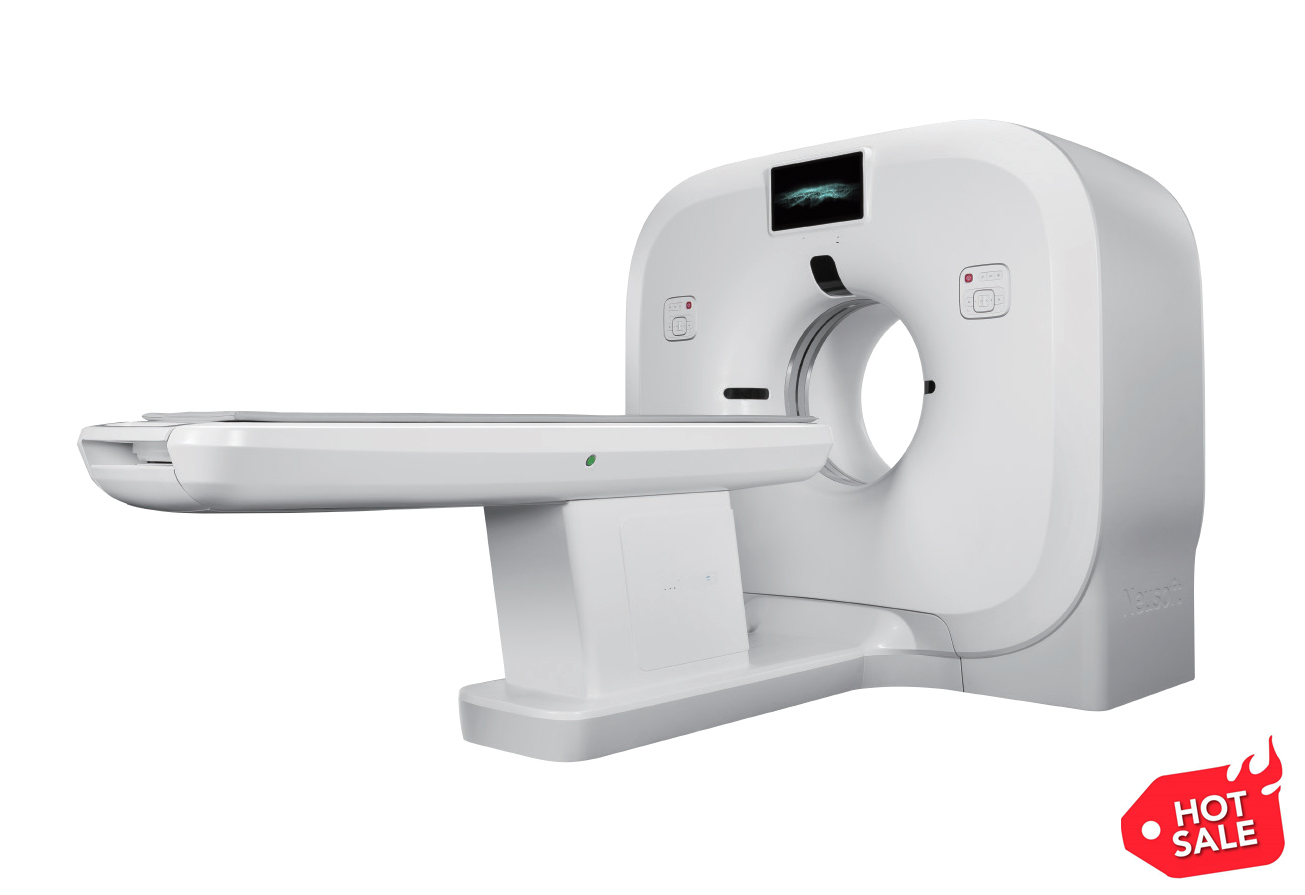

- Product name:16 Slice 32 Row CT Xray Scanner Machine
- Product code:CCXCT5
Packaging Specifications
- Outer Packaging Size:4 × 4 × 1.7 m
- Gross Weight:1000 kg
- Net Weight:995 kg
- Volume:27.2
Description
16 Slice 32 Row CT Scanner (Product Details)
Core Overview
THIS is a high-performance whole-body CT scanner that integrates excellent clinical performance, optimized workflow efficiency and outstanding economic value. Drawing on the innovative technology of the 512-slice CT platform, it breaks the limitations of traditional low-cost CT scanners, delivering high-end imaging experiences with consistent image quality. Equipped with core technologies such as CARE60 low-dose system, Micro120 high-resolution reconstruction, Spectral Imaging and HD Imaging Chain, it covers a wide range of clinical applications including pediatric scanning, oncology follow-up, emergency diagnosis and various CTA examinations. With compact design, energy-saving features and streamlined workflow, it helps medical institutions reduce operational costs, improve patient throughput and enhance diagnostic capabilities, achieving better clinical outcomes at lower costs.

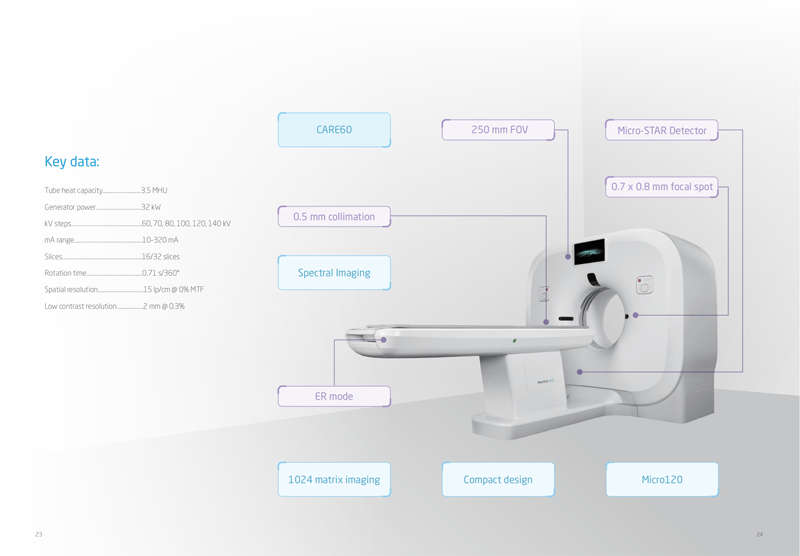

Core Technical Parameters
| Category | Parameter Details |
|---|---|
| Basic Configuration | Slices: 16/32 slicesMaximum reconstruction slices per rotation: 120-slice (Micro120 technology)Minimum overlapping reconstruction: 0.1 mm (independent of pitch) |
| X-ray Tube & Generator | Tube heat capacity: 3.5 MHUGenerator power: 32 kWkV range: 60, 70, 80, 100, 120, 140 kV (supports 60 kV low-dose scanning for pediatric patients)mA range: 10-320 mA |
| Scanning Performance | Rotation time: 0.71 s/360°Mechanical tilt range: Up to 30 degrees (E-tilt digitalization)Scan Field of View (SFOV): 250 mm (accommodates various patient sizes and anatomies)Collimation: 0.5 mm |
| Imaging Quality | Spatial resolution: 15 lp/cm @ 0% MTFLow contrast resolution: 2 mm @ 0.3%Reconstruction matrix: 1024 matrix (supports 512 matrix)Focal spot: 0.7x0.8 mmKey imaging technologies: ClearView Advanced Iterative Reconstruction Algorithm, HD Imaging Chain, Micro-STAR Detector |
| Dose Performance | 60 kV low-dose mode: Over 94% dose reduction compared to 120 kV (diagnostic image quality unaffected)Typical low-dose cases: 7-year-old child (23 kg) - CTDIvol: 0.4 mGy, Effective dose: 0.1 mSv; 82-year-old adult (60 kg) - CTDIvol: 1.0 mGy, Effective dose: 0.41 mSv |
| Workflow & Design | Emergency Mode: 10 preset emergency protocols, one-click scanning (bypasses administrative steps)Installation space: Minimum 11.8 m² (42% smaller than previous Neusoft model)Power consumption: 12% reduction (energy-saving intelligent power management)Door-to-report time: Up to 75% reduction compared to conventional CTPost-processing efficiency: Up to 400% more efficient than conventional CT |
| Special Functions | Spectral Imaging: 40-140 keV serial monochromatic imaging, material separation, eff-Z number confirmationArtifact reduction: Metal artifact reduction (beam hardening artifact suppression)Clinical application software: One-click bone removal, automatic vessel labeling, one-click analysis, one-click report generationReal-time MPR: Multi-planar reconstructed images displayed during scanning |

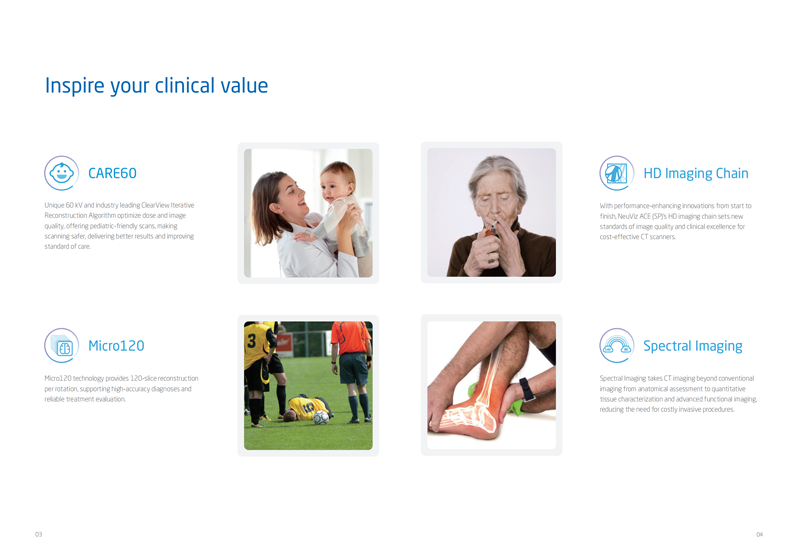

Core Clinical Value & Application Scenarios
1. Low-Dose High-Quality Imaging (CARE60 Technology)
- Pediatric & Dose-Sensitive Patients: Exclusive 60 kV scanning (industry first), over 94% dose reduction vs 120 kV, maximizing protection for children, elderly and patients requiring long-term follow-up (e.g., oncology, chronic diseases).
- Routine Examinations: ClearView Iterative Reconstruction Algorithm reduces noise at low kV, ensuring uncompromised image quality while minimizing radiation exposure for all patients.

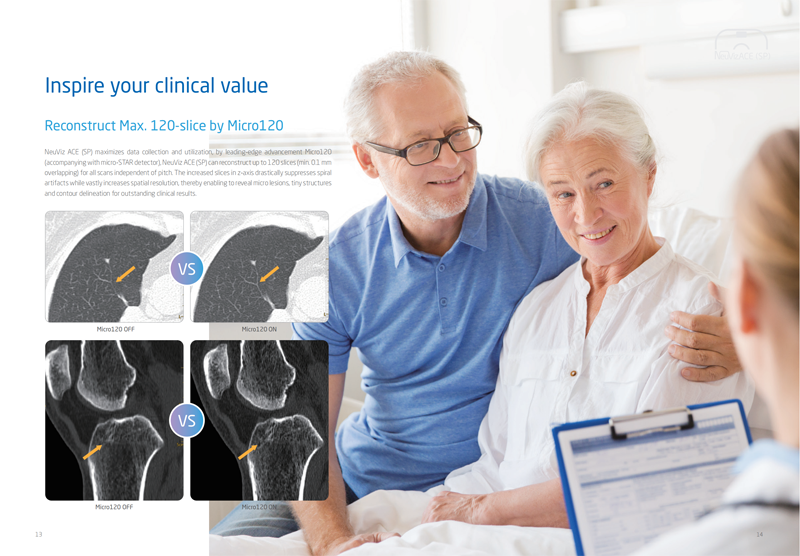

2. High-Resolution Reconstruction (Micro120 Technology)
- Reconstructs up to 120 slices per rotation, significantly suppressing spiral artifacts and improving spatial resolution.
- Enables clear visualization of micro lesions, tiny anatomical structures and precise contour delineation, enhancing diagnostic accuracy for early disease detection.

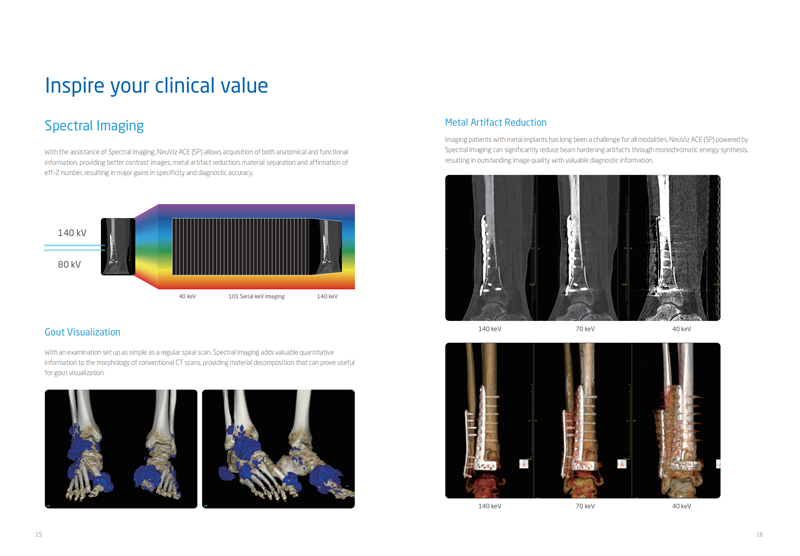

3. Spectral Imaging (Functional & Quantitative Diagnosis)
- Beyond conventional anatomical imaging, provides functional information including material decomposition, gout visualization and metal artifact reduction.
- Supports 101 serial keV imaging (40-140 keV), improving contrast resolution and diagnostic specificity, reducing the need for invasive procedures.
4. HD Imaging Chain (Comprehensive Quality Enhancement)
- Integrates Micro-STAR Detector, 0.5 mm thin collimation, 1024 reconstruction matrix and 0.7x0.8 mm focal spot.
- Delivers detailed visualization of fine anatomical structures, magnifies detectability of micro lesions and highlights clear lesion borders, ensuring exceptional clinical outcomes.

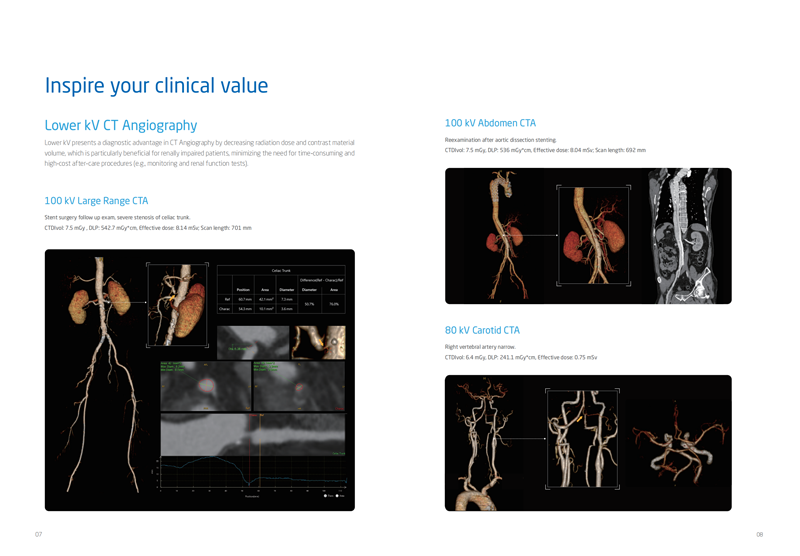

5. Diversified CTA Examinations (Lower kV Advantage)
- Reduces radiation dose and contrast material volume, particularly beneficial for renally impaired patients (minimizes after-care procedures).
- Typical applications:
6. Full-Coverage Clinical Routine
| Clinical Field | Application & Advantages |
|---|---|
| Neuroimaging | Fast scanning speed, detailed display of brain structures, supports rapid life-saving intervention decisions (e.g., postoperative cerebral hemorrhage reexamination: Effective dose: 1.44 mSv) |
| Lung Imaging | Low-dose high-definition acquisition, makes lung cancer screening accessible to high-risk asymptomatic individuals (e.g., pulmonary bulla/pleural effusion: Effective dose: 2.67 mSv) |
| Abdominal Imaging | Balanced imaging chain with defined edges and natural contouring, supports multi-phase scanning (plain scan, arterial phase, venous phase); 100 kV mode reduces dose by ~45% vs 120 kV (e.g., hepatic cyst: 100 kV effective dose 3.48 mSv vs 120 kV 6.27 mSv) |
| Orthopedic Imaging | Fast scan time, long scanning range, consistent image quality with dose reduction, ideal for trauma patients requiring immediate care |
Workflow Optimization & Operational Advantages

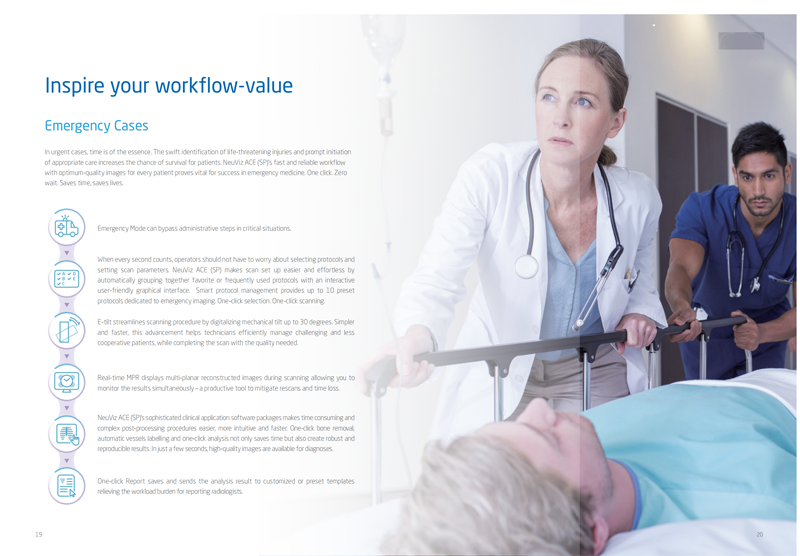

1. Emergency Diagnosis Efficiency
- One-Click Emergency Mode: 10 preset emergency protocols, bypasses administrative steps, achieves "one-click selection + one-click scanning" for zero wait time.
- E-tilt Digitalization: Simplifies scanning of uncooperative patients, completes high-quality scans efficiently.
- Real-Time MPR Monitoring: Displays reconstructed images during scanning, reduces rescans and time loss.
2. Streamlined Daily Workflow
- Standardized process from setup, positioning, scanning to post-processing and reporting, improving resource utilization.
- Intuitive graphical interface with protocol grouping, supports quick selection of frequently used protocols.
- Efficient post-processing: One-click bone removal, automatic vessel labeling, one-click analysis (results available in seconds).
- One-click report: Saves analysis results to customized/preset templates, reducing radiologist workload.
3. Economic & Environmental Value
- Space-Saving Design: 11.8 m² minimum installation space (42% smaller than previous model), optimizes room utilization.
- Energy-Saving: 12% power consumption reduction via intelligent power management and efficient electricity transmission.
- Increased Patient Flow: Accelerated workflow and fast scanning speed improve daily throughput; affordable advanced screening attracts more referrals, driving business growth.
Service & Support
- Global Service Network: Covers Russia, Germany, USA, Brazil, Dubai, Vietnam, Philippines and other regions with local subsidiaries, service centers and spare parts centers.
- Remote Service Capabilities: Provides immediate technical support, proactive fault identification and correction, minimizing equipment downtime.
- Professional Training: HQ China CT global training center offers systematic training for medical staff.
