Product info
- Product name:16 Slice 32 Row CT Xray Scanner Machine
- Product code:CCXCT4
Packaging Specifications
- Outer Packaging Size:4 × 4 × 1.7 m
- Gross Weight:1000 kg
- Net Weight:0 kg
- Volume:27.2
Description

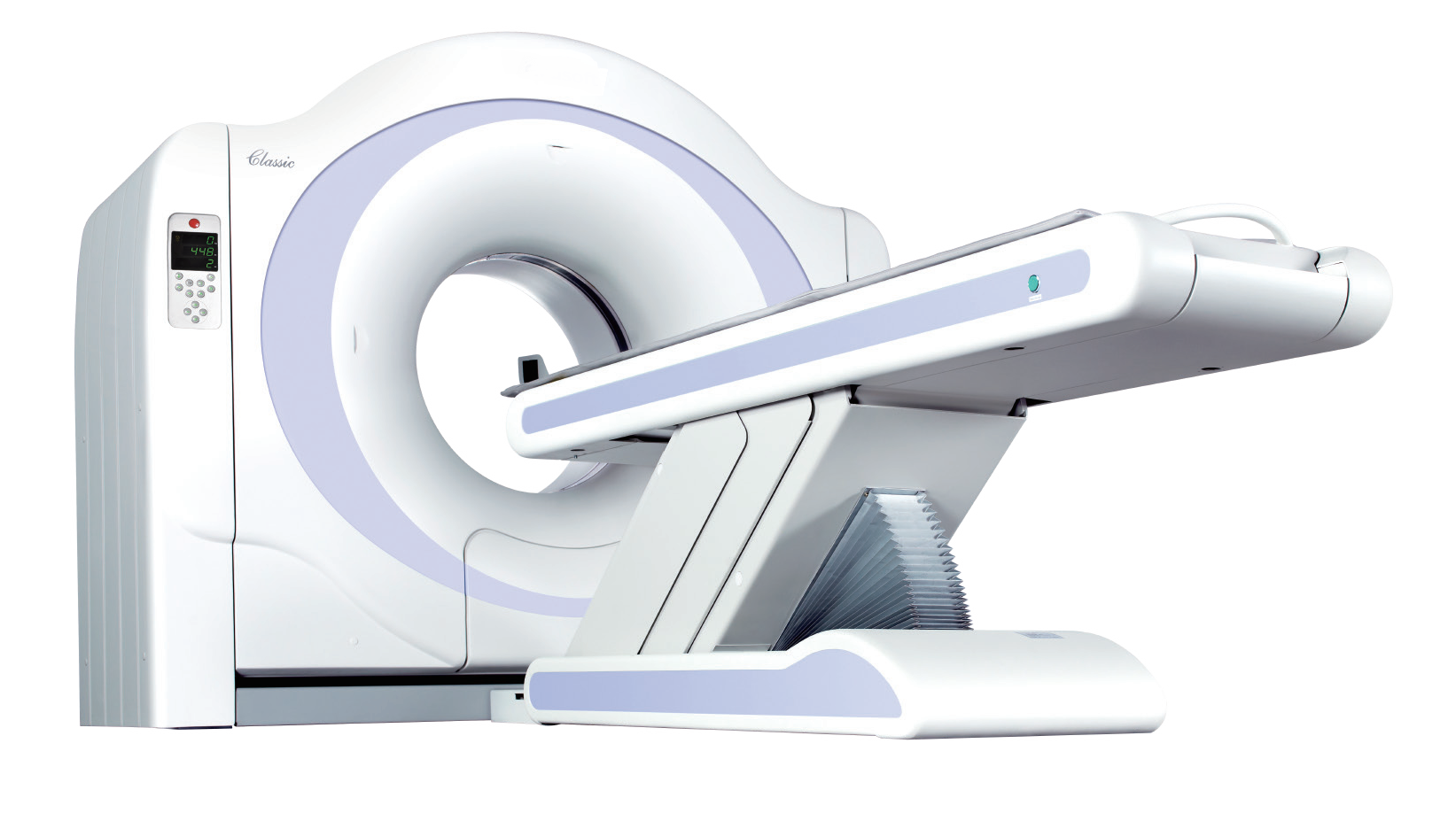

16 Slice 32 Row CT Scanner (NeuViz 16 Classic)
Core Overview

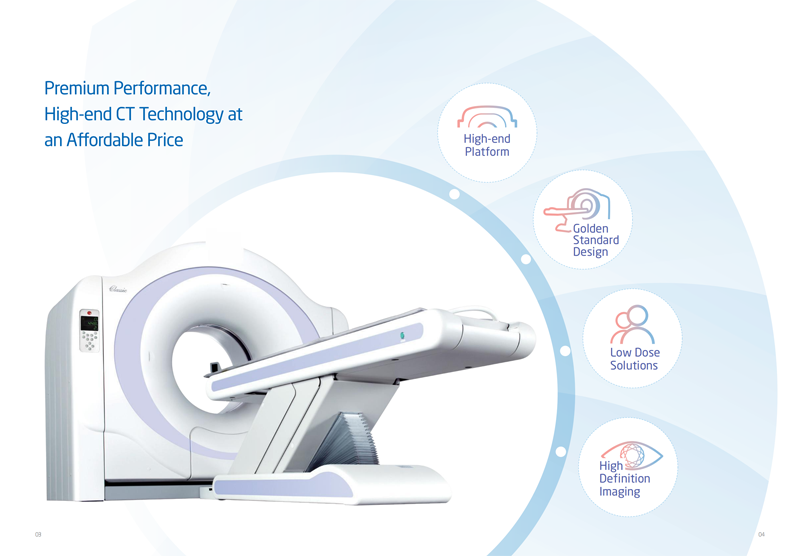

(NeuViz 16 Classic) is a cost-effective high-performance CT scanner launched by China Care Medical Equipment Co., Ltd., integrating premium clinical performance, comprehensive low-dose solutions and user-friendly design. It breaks the trade-off between budget constraints and clinical utility, delivering high-end CT technology at an affordable price. Equipped with a 4.0 MHU high-heat-capacity X-ray tube, 32-row sub-millimeter detector, ClearView advanced iterative reconstruction algorithm and 1024×1024 high-definition imaging matrix, it supports extended scan ranges, large patient compatibility and diverse clinical applications. With a full suite of dose reduction tools, golden standard structural design and powerful post-processing functions, it meets the diagnostic needs of various medical institutions while controlling operational costs, making it an exquisite choice for cost-effective high-quality CT imaging.
Core Technical Parameters
| Category | Parameter Details |
|---|---|
| Basic Configuration | Slices: 16 slicesDetector configuration: 32-row detectorImaging matrix: 1024×1024 (supports 512×512) |
| X-ray Tube & Generator | Tube heat capacity: 4.0 MHUGenerator power: 28 kWContinuous scanning capability: 100 seconds at maximum power ratingDetector performance: Sub-millimeter coverage, 99.99% X-ray conversion efficiency, minimal afterglow (2,320 projections per rotation)Collimation: Adaptive collimation (adjusts to scan modes, improves X-ray efficiency) |
| Scanning Performance | Gantry aperture: 70 cmGantry mechanical tilt: ±30°Couch design: Vertical movement (facilitates patient access, ensures ISO center alignment)Scan advantages: Extended scan ranges, supports large patient scanning without tube cooling delay |
| Dose Control & Imaging Quality | Low-dose technologies: 3D Dose Modulation, Dose Check, Organ Safe, Auto kV, 240° Exposure, Pediatric Protocols, new detector materialIterative reconstruction: ClearView Advanced Iterative Reconstruction Algorithm (optimizes dose without compromising diagnostic quality)Lowest effective dose: Below 0.1 mSv for certain studiesImaging advantage: High-definition visualization of small anatomical structures (ideal for lungs, inner ear, etc.) |
Core Product Advantages
1. Premium Performance & High-End Technology
- Powerful X-ray Tube: 4.0 MHU high-heat-capacity design enables 100 seconds of continuous scanning at maximum power, supporting long-range anatomical studies and large patient imaging without tube cooling delays; larger anode ensures stable focal track, reducing scatter and artifacts.
- High-Efficiency Detector: 32-row sub-millimeter detector with 99.99% X-ray conversion efficiency and minimal afterglow collects 2,320 projections per rotation, increasing anatomical coverage per rotation, shortening scan time and reducing patient dose.
- Adaptive Collimation: Adjusts dynamically to different scan modes, improving X-ray utilization efficiency and optimizing imaging quality.
2. Comprehensive Low-Dose Solutions
- Multi-Dimensional Dose Reduction Tools: Integrates 3D Dose Modulation, Dose Check, Organ Safe, Auto kV, 240° Exposure and specialized Pediatric Protocols, ensuring patient dose is "as low as reasonably achievable (ALARA)".
- ClearView Iterative Reconstruction: Performs iterative processing in both projection and image spaces, significantly reducing noise and enabling low-dose scanning (e.g., 120KV 64mA with ClearView achieves comparable image quality to 120KV 142mA with FBP reconstruction).

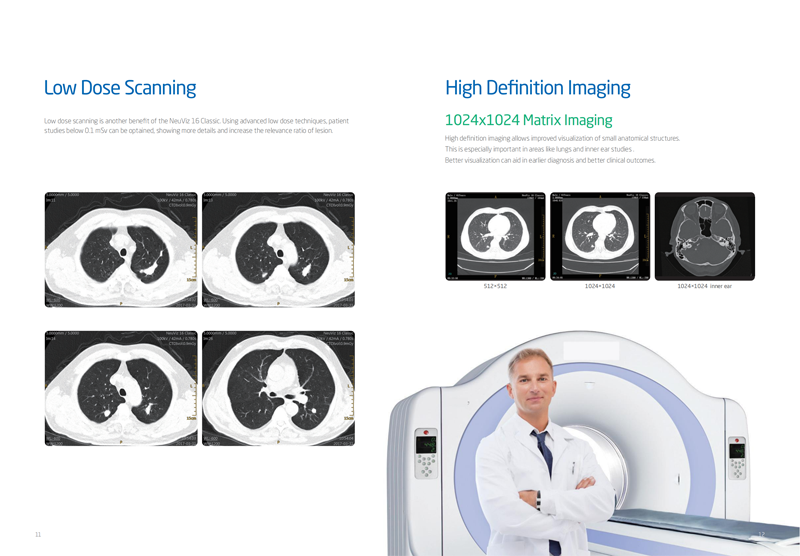

- Ultra-Low Dose Scanning: Supports studies with effective dose below 0.1 mSv, displaying more anatomical details and increasing lesion detection relevance.

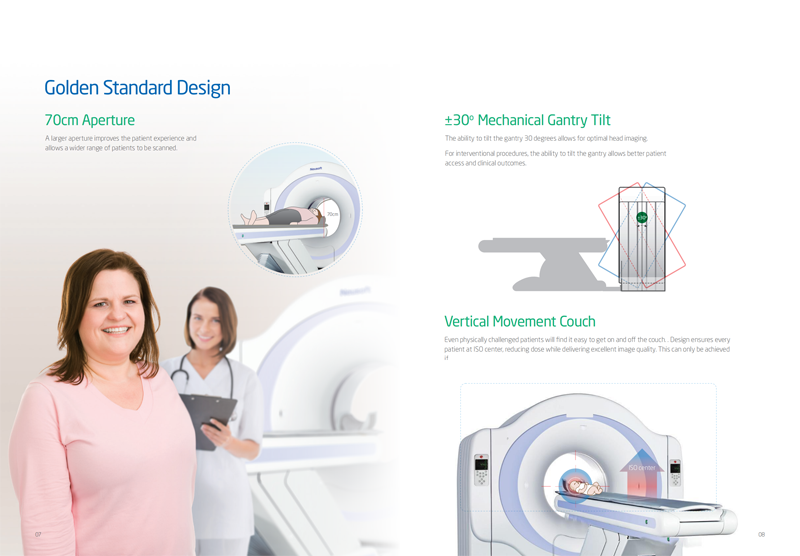

3. Golden Standard Structural Design
- 70 cm Gantry Aperture: Larger aperture improves patient comfort and accommodates a wider range of patients (including obese individuals).
- ±30° Mechanical Gantry Tilt: Facilitates optimal head imaging and provides better patient access for interventional procedures, enhancing clinical outcomes.
- Vertical Movement Couch: User-friendly design allows physically challenged patients to easily get on/off the couch; ensures all patients are aligned at the ISO center, reducing dose while maintaining excellent image quality.
4. High-Definition Imaging & Powerful Post-Processing
- 1024×1024 High-Definition Matrix: Delivers superior visualization of small anatomical structures, critical for lung, inner ear and other detailed examinations, aiding early diagnosis and improved clinical outcomes.

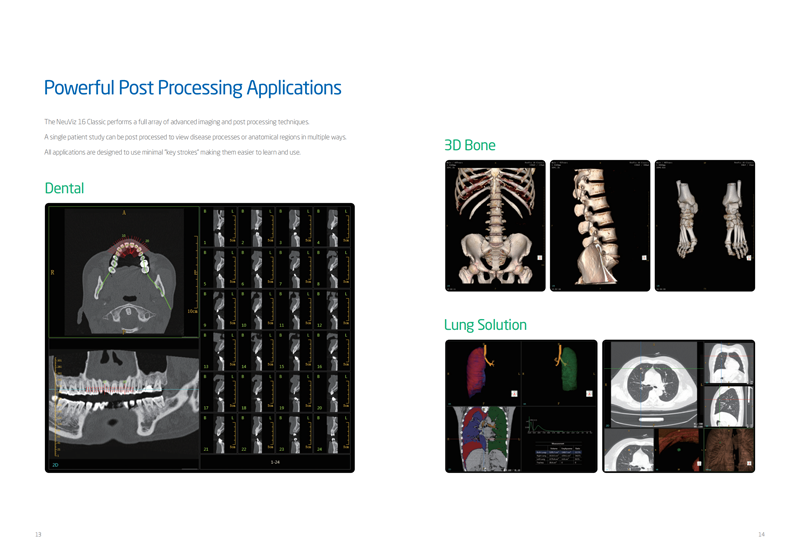

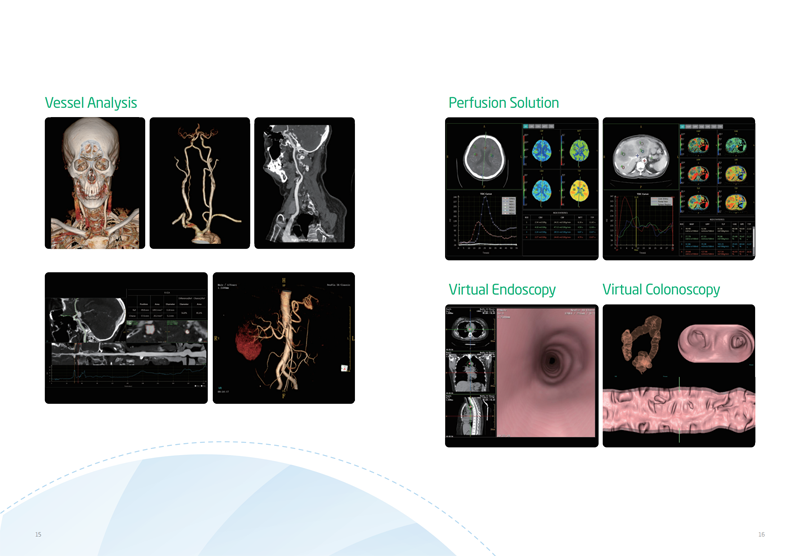

- Diverse Post-Processing Applications: Supports a full array of advanced techniques with minimal keystrokes, including Dental imaging, 3D Bone reconstruction, Lung Solution, Vessel Analysis, Perfusion Solution, Virtual Endoscopy and Virtual Colonoscopy; easy to learn and use, adapting to multi-disciplinary diagnostic needs.
Core Clinical Applications
Suitable for a wide range of clinical scenarios including general radiography, pediatric imaging, lung screening, inner ear diagnosis, orthopedic evaluation, vascular analysis and interventional procedures. It meets the diagnostic needs of various departments such as radiology, pediatrics, orthopedics, cardiology and oncology, supporting routine examinations, disease follow-up and minimally invasive intervention guidance. The combination of low-dose scanning and high-definition imaging makes it particularly suitable for pediatric patients, elderly individuals and those requiring repeated scans.
Operational & Economic Value
- Cost-Effective: High-end CT technology at an affordable price, reducing initial purchase budget pressure; optimized tube design and dose control extend equipment service life, lowering long-term operational costs.
- User-Friendly: Intuitive operation interface, minimal keystrokes for post-processing and couch design adapting to diverse patients reduce training costs and improve workflow efficiency.
- Space Adaptability: Compact design (implied by structural optimization) fits various hospital room layouts, no additional large-space renovation required.
