Description

Technical Specifications

ECG

5 Leads: RA, LA, LL, RL, V lead mode: I, II, III, AVR, AVL, AVF, V

3 Leads: R, L, F or RA, LA, LL Lead mode: I, II, III

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV,20mm/mV, auto

Sweep speed: 12.5mm/s, 25mm/s, 50mm/s

Bandwidth Surgery: 1 ~ 20Hz

Monitor: 0.5 ~ 40Hz

Diagnostic: 0.05 ~ 130Hz

Calibration Signal: 1(mVp-p), Accuracy: 5%

CMRR Diagnostic Mode: >90dB

Monitor Mode: >110dB

Surgery Mode: >110dB

Electrode offset potential: ±300mV

Leakage Current: <10 uA

HR Measure Range Adult: 15 ~ 300 bpm

Neonatal/Pediatric: 15 ~ 350 bpm

Accuracy: ±1%

Resolution: 1bpm

Sensitivity: >200 (uVp-p)

Differential Input Impedance: >5 MΩ

ST Segment ST Segment Monitoring Range Measure and Alarm: -2.0 ~ +2.0mV

Accuracy: -0.8mV ~ +0.8mV ±0.02mV or ±10%, which is greater

ARR Detecting Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, BRADY, MISSED BEATS, PNP, PNC, Alarm Available, Review Available

NIBP

Method: Oscillometry

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240, 480 (Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40 ~ 240bpm

Alarm Type: SYS, DIA, MEAN

Measuring and alarm range:

Adult Mode: SYS 40 ~ 280mmHg DIA 10 ~ 220mmHg MEAN 20 ~ 240mmHg

Pediatric Mode: SYS 40 ~ 220mmHg DIA 10 ~ 160mmHg MEAN 20 ~ 170mmHg

Neonatal Mode: SYS 40 ~ 135mmHg DIA 10 ~ 100mmHg MEAN 20 ~ 110mmHg

Resolution: 1mmHg

Accuracy: Maximum Mean error ±5mmHg Maximum Standard deviation 8mmHg

Overpressure Protection Adult Mode: 300mmHg Pediatric Mode: 240mmHg Neonatal Mode: 150mmHg

Static pressure accuracy: 3mmHg

SpO2

Measuring Range: 0 ~ 100%

Resolution: 1%

Alarm Range: 0 ~ 100%

Accuracy: 70% ~ 100% ±2% <69% unspecified

Actualization interval about: 1 Sec.

Alarm Delay: 10 Sec

Pulse Rate Measuring and Alarm Range: 20 ~ 250bpm

Resolution: 1bpm

Accuracy: ±3bpm

Perfusion Index Measure and Alarm Range: 0.02 ~ 20%

Resolution: 0.01%

Respiration

Method: Impedance between R-F(RA-LL)

Measuring Impedance Range: 0.3~3Ω

Base line Impedance Range: 200~4000Ω

Bandwidth: 0.3~2.5Hz

Resp rate: Measurement Range Adult: 0 ~ 120 BrPM Neonatal / Pediatric: 0 ~ 150 BrPM

Resolution: 1 BrPM

Accuracy: 0 ~ 6 BrPM: unspecified 7 ~ 150 BrPM: ±2 BrPM

Apnea Alarm: 10 ~ 40 S

Gain 0.25,0.500,1,2,4

Differential Input Impedance: >2.5MΩ

Inspiriting current: <300 µA RMS max

TEMP

Channel: 2

Measuring and Alarm Range: 0 ~ 50℃

Resolution: 0.1℃

Accuracy: ±0.1℃(0 ~ 50℃)

Actualization interval about: 1 Sec

Average Time Constant: <10 Sec

Sensor Type: 10K series, 2.25K series

IBP (optional)

Sensor Reusable sensors: OHMEDA P23XL or BD, EDWARD compatible

Once usage: OHMEDA DT-4812 or BD, EDWARD compatible

Excitation voltage: +5Vdc ±2%

Sensitivity: 5uV/V/mmHg

Channels: 2 channels

Measure Range: -50~ 360(mmHg)

Resolution: 1mmHg

Accuracy(no sensor): ±2% or ±1mmHg, use the greater

Band Width Normal mode: DC ~ 40Hz Smooth mode: DC ~ 12.5Hz

Measurable parameter: ART, PA, CVP, LAP, RAP, ICP

Gas (optional)

Range FiCO2,EtCO2: 0 ~ 15%

RR: 0 ~ 150BPM

N2O: 0 ~ 100%

Sevoflurane: 0 ~ 10%

Isoflurane: 0 ~ 8%

Enflurane: 0 ~ 8%

Desflurane: 0 ~ 22%

Accuracy FiCO2,EtCO2: ± (0.2% + 5% of reading)@(0 ~ 10%) ± (0.2% + 8% of reading)@(0 ~ 10%)

RR : ±1BPM

N2O : ± (2% + 3% of reading)

Sevoflurane : ± (0.15% + 5% of reading)@(5 ~ 10%) ± (0.3% + 10% of reading)@(5 ~ 10%)

Isofurane : ± (0.15% + 5% of reading)@(0 ~ 5%) ± (0.15% + 10% of reading)@(5 ~ 8%)

Enflurane : ± (0.15% + 5% of reading)@(0 ~ 5%) ± (0.3% + 5% of reading)@(5 ~ 8%)

Enflurane : ± (0.15% + 5% of reading)@(0 ~ 10%) ± (0.3% + 10% of reading)@(5 ~ 22%)

CO2 (optional)

Measure Range: 0% ~ 13%

Resolution: 1mmHg

Accuracy: 2mmHg @ < 5.0% CO₂(at ATPS)

Breath Rate: 3 ~ 150 bpm

Recorder (optional)

Paper width: 50 mm

Paper length: 20 m

Speed: 6.25/12.5/25/50 mm/s

Wave channel: 3 channels

Quality Standards and Classification

ISO13485 ISO9001,CFDA,FSC

MDD classification: Class Ⅱb

Anti-electroshock degree: ClassⅠequipment (internal power supply)

TEMP/SpO2 /NIBP: BF

ECG/Resp: CF

Application Range

Adult/Pediatric/Neonatal/Medicine/Surgery/ Operating Room/ICU/CCU/Clinic/Ambulance/ Emergency Centers/Bedside Care Ward/Family Care

Environment

Temperature Working: 0 ~ 40℃ Storage: -20 ~ 50℃

Humidity Working: 15% - 90% Storage: 15% - 90% (no coagulation)

Atmospheric pressure Working: 86.0kPa ~ 106.0kPa Storage: 86.0kPa ~ 106.0kPa

Power Requirement

External power required AC: 100V ~ 240V, 50Hz/60Hz

DC: Built-in rechargeable battery

Battery: 14.8V, 2200mAh rechargeable Li-ion battery

2h operating after full charge

5min operating after low battery alarm

Input power: Pmax=90VA

FUSE: T1.5AL 250V

Storage

Trend 720 hours

NIBP review 1000 NIBP events

Wave review 2 hours

Alarm review 200 alarm events

All storage data are non volatile

Dimension and Weight

Equipment: 350mm × 155mm ×320mm(about); 4.5kg(about)

Package: 430mm × 315mm × 400mm; 7.7kg(about)

Various Extensible interfaces

Standard: Ethernet Network, USB Port

Option: AG,Nurse Call,VGA output,Defibrillation Synchronization Output/analog output

Standard Configuration

Standard: 5-leads ECG, RESP, SPO2,NIBP,2-TEMP

Option: 2-IBP,Side stream /mainstream / Micro stream CO2/Nellcor Spo2, Suntech Blood Pressure

Option: Built-in Recorder & WLAN modular

Standard Accessories

Adult NIBP cuff & Extension tube, ECG cable & electrodes, SpO2 sensor, TEMP probe, Lithium-ion battery, Power cable,User manual

Features

Central station support Nurse Call by wire/wireless network

Digital SpO2 with excellent performance

Support more than 20 kinds languages

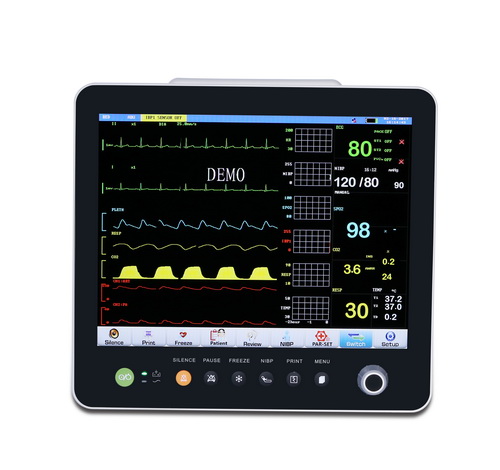

15" Color TFT LCD Screen, optional touch screen, Display Resolution: 1024*768

2 hours wave storage,720 hours Trend review,200 alarm events,1000 NIBP measurement data review

Optional interface: Maximum 14-channel waveforms display, the waveform color can be defined by user (7 colors)

ST and 13 kinds arrhythmia analysis, pacemaker analysis, drug dose calculation

Respiration monitoring with apnea alarms, alarm review, arrhythmia review

Unique human voice alarm, Three Level: Low, medium and high

Indication: Auditory and visual, All alarms can be silenced, Alarm Volume: The scope is 1~10

Rechargeable high energy built-in Li battery, AC/DC available, silent fanless design

Anti‐defibrillation design, NIBP over pressure protection

Standard interface: Maximum 9-channel waveforms display, the waveform color can be defined by user (7 colors)

PVI (Pleth Variability Index)

USB support PDF file export

The machine includes a spare parts box

Optional Configuration

Touch Screen, Suntech Blood Pressure, Nellcor Spo2, Wall Mount, Recorder, Rolling Stand, Children Accessories, Depth of anesthesia, Newborn Accessories, Disposable Spo2 Probe
