Description

Patient Monitor Specifications

Key Features

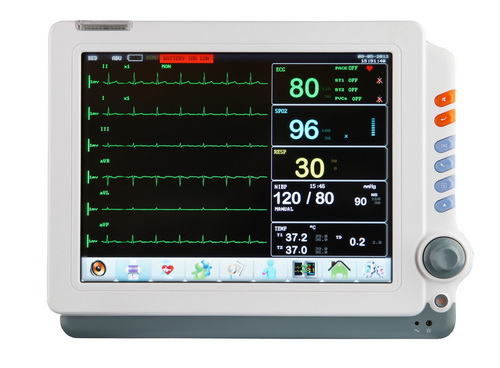

• 12.1" color TFT touch screen with Windows-style, multi-channel display
• Big font interface for easy viewing
• ST segment and arrhythmia analysis
• Drug dose calculation and titration table
• OxyCRG dynamic view display
• Respiration monitoring with apnea alarms
• Alarm review and arrhythmia review functions
• Patient info input capability
• Anti-defibrillation design
• NIBP overpressure protection
• Plug-in rechargeable battery, with both AC/DC power options
• Supports wired or wireless network connectivity
• AIAH(TM) ECG technology for anti-interference, even with weak signals
• Surepeb(TM) NIBP technology for accurate measurements in both hypotensive and hypertensive patients
• Nellcor(TM) OxiMax(TM) SpO2 technology for reliable readings in low perfusion and motion-prone conditions
• Optional plug-and-play EtCO2 monitoring via Respironics CAPNOSTAT mainstream (intubated patients) and LoFlo sidestream (non-intubated patients) sensors

Technical Specifications

ECG

• Lead Modes: 5-lead (R, L, F, N, C or RA, LA, LL, RL, V) and 3-lead (R, L, F or RA, LA, LL)
• Lead Selection: I, II, III, aVR, aVL, aVF, V
• Waveform Display: 2-channel or 1-channel
• Gain Options: 2.5, 5.0, 10.0, 20.0 mm/mV, or auto
• HR Range:
• Accuracy: ±1% or ±1 bpm (whichever is greater)
• Resolution: 1 bpm
• Sensitivity: > 200 uVp-p
• Differential Input Impedance: > 5 MΩ
• CMRR: > 105 dB (Monitor/Operation), > 85 dB (Diagnosis)
• Electrode Offset Potential: ±300 mV
• Leakage Current: < 10 µA
• Baseline Recovery: < 3 seconds after defibrillation
• ECG Signal Range: ±8 mV (Vp-p)
• Bandwidth:
• Calibration Signal: 1 mVp-p, 5% accuracy
• ST Segment Monitoring Range: -2.0 to +2.0 mV
• Arrhythmia Detection: Includes asystole, VFIB/VTAC, couplets, bigeminy, trigeminy, R-on-T, VT>2, bradycardia, missed beats, PNP, PNC, with alarm and review functions

Respiration

• Method: Impedance between R-F (RA-LL)
• Differential Input Impedance: > 2.5 MΩ
• Measuring Impedance Range: 0.3–3 Ω
• Baseline Impedance Range: 200–4 kΩ
• Bandwidth: 0.1–2.5 Hz
• Respiration Rate:
• Accuracy: ±2 Brpm
• Response Time: 1 second
• Gain Options: ×1, ×2, ×4, ×0.5
• Apnea Alarm: 10–40 seconds
• Alarms: Sound and light, adjustable range

NIBP

• Method: Oscillometric
• Modes: Manual/Auto/STAT
• Units: mmHg/kPa
• Protection: Double security
• Measurement Time: < 45 seconds
• Cuff Range: 0–250 mmHg (adult), 0–180 mmHg (child)
• Inflation Target: SBP + 30 mmHg
• Range:
• Accuracy: ANSI/AAMI SP10-2002 standard error and standard deviation
• Response Time: 1 second
• Alarms: Sound and light, adjustable range

SpO2

• Range: 0–100%
• Accuracy: ±2% (70–100%), unspecified (0–69%)
• Resolution: 1%
• Pulse Rate: 20–300 bpm
• Response Time: 1 second
• Alarms: Sound and light, adjustable range

Temperature

• Range: 0–50 °C
• Resolution: 0.1 °C
• Accuracy: ±0.1 °C (excluding transducer error)
• Response Time: 1 second
• Alarms: Sound and light, adjustable range

IBP (Optional)

• Labels: ART, PA, CVP, RAP, LAP, ICP, P1, P2
• Range: ART 0–300 mmHg
• Sensor Sensitivity: 5 µV/V/mmHg
• Impedance: 300–3000 Ω
• Resolution: 1 mmHg
• Accuracy: ±2% or 1 mmHg (whichever is greater)
• Response Time: 1 second

EtCO2 (Optional)

• Sensor Types: CAPNOSTAT mainstream (intubated patients) and LoFlo sidestream (non-intubated patients)

Printer (Optional)

• Specification: Dual-channel thermal array data recorder
• Print Modes: Real-time or event-triggered waveform and text recording
• Accuracy: Horizontal 400 dpi, Vertical 800 dpi
• Annotations: Date/time (24-hour)

Standard and Optional Configurations

• Standard: ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature
• Optional: Nellcor SpO2, EtCO2, IBP, Thermal Recorder
