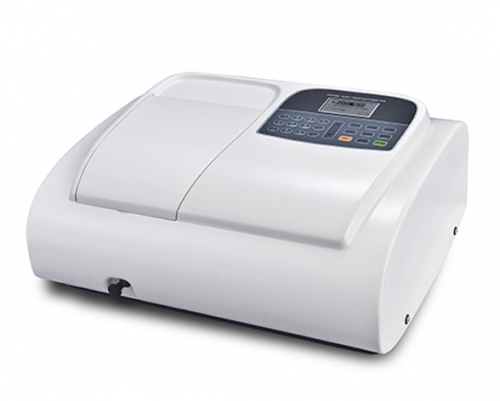

Visible Spectrophotometer

Lead screw structure The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
Item Code: CCL-V5800
Sold: 10
    Please select the information you wantX
Wholesale Price:
2
$1,120.00
3
$1,050.00
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Specifications

Features

Lead screw structure

The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.

Auto setting wavelength

Users set wavelength automatically through arrow keys to avoid operation errors.

Numerical Keys

With microprocessor controlled, all parameters of the instrument can be easily set by numerical keys.

Date output

Equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.

8mm thick optical base

The instrument use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

Standard curve

instruments can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.

Technical Specification

 Model

CCL-V5800

 Wavelength Range

320-1100nm

 Bandwidth

2nm

 Wavelength Accuracy

±0.5nm

 Wavelength Repeatability

0.2nm

 Wavelength Setting

Auto

 Photometric Accuracy

±0.3%T

 Photometric Repeatability

0.2%T

 Photometric Range

-0.3-3A

0-200%T

0-9999C

 Stability

± 0.001A/h @ 500nm

 Baseline Flatness

± 0.0015A/h

 Stray Light

≤0.05%T

 Data Output Port

USB

 Printer Port

Parallel Port

 Display

128*64 Dots LCD

 Lamps

W  Lamp

 Detector

Silicon Photodiode

 Power Requirements

AC   220V/50Hz or  110V/60Hz

 Dimension

460*360*225mm

 Weight

18kg
