Product Description,

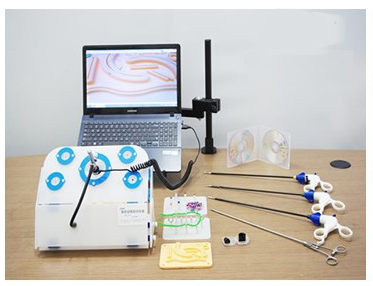

Laparoscopic simulator for training, training instrument, training modules
This is a brand new endoscopic operation simulator with USB camera. Can be connected to a PC, ideal for students, medical schools or CME classes.

Configuration list,
1, training box
The training box is transparent hemispherical which simulates the human abdomen, with 4 silicone holes on it, simulates the trocar in the operation.
There are three boxes of different types,

1, medium round type, Model: CCL91


2, square medium type,Model: CCL92


3, large square type, Model: CCL93


2, training camera
The drive camera is 300,000 dynamic pixels, connect to the computer by USB, manually focusing on the top, It is only suitable for Winxp, win7, win8 operating system, can not adapt to Mac system.
Type 1, USB cable type Standard Camera ,640*480pix,  Model: CCL81


USB cable type HD High Definition Camera , 1280x720pix, CCL82
Model: CCL82-1
0 degree type



Model: CCL82-2
30 degree type

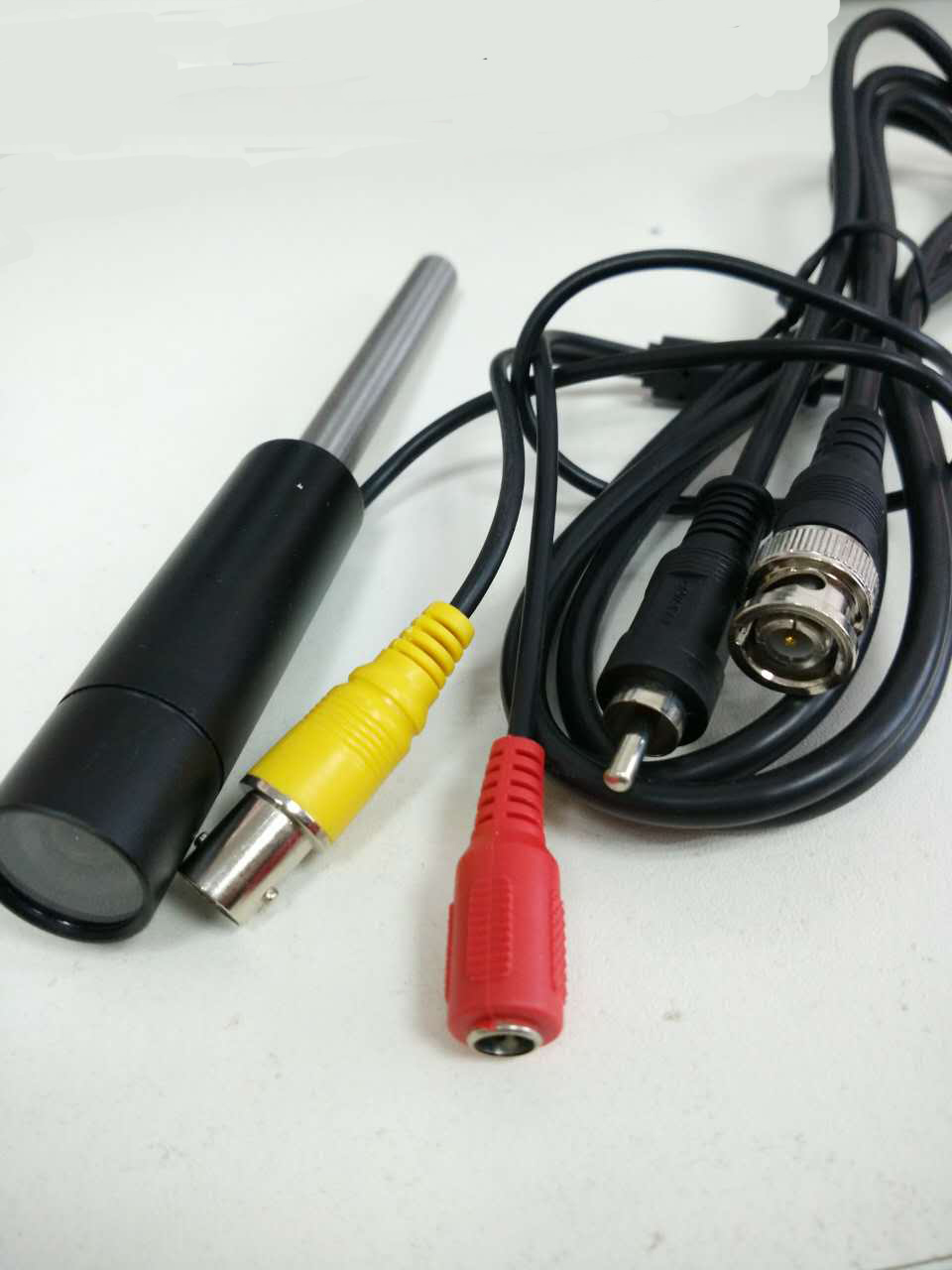

Type 2,TV cable type , 640*480pix, 0 degree, Model: CCL83


3, training instruments
Needle holder, the size is 5 * 330mm same as a real operating instrument. Stainless steel top and handle.
Model: CCL70-1


forceps, the size is 5 * 330mm the same as the real operating instrument. Stainless steel top, plastic handle.
Model: CCL70-2


grasping forceps, the size is 5 * 330mm same as a real operating instrument. Stainless steel top, plastic handle.
Model: CCL70-3


Scissors, the size is 5 * 330mm the same as a real operating instrument. Stainless steel top, plastic handle.
Model: CCL70-4


4, training modules,
Suture module, simulate body tissue, practice suturing practice.
Model: CCL60-1


Perforation modulus, practice position and sense of space in laparoscopic surgery
Model: CCL60-2

Clamping module, mastery of training instruments, clamping capacity
Model: CCL60-3


Silastic organic modulus
Model: CCL60-4


5, accessoires
suture needle,sutures ,liquid paraffin(Lubrication for the instrument  enter the training box )


6, User manual, English version,


Package,
It will has two pcs carton package to protect each equipment well, one is inner carton, another is the outside carton.




There are different Model Set can be choose.
Model Set 1,Round-middle type, USB cable type, Model: CCL501

Without Computer
1 medium type round drive box, 1 piece
2 cameras for endoscopes with USB cable, 1 piece
3 training modules (suture module, perforated module, tightening module), 1 pc of each module, total 3 different pcs
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual


Model Set 2,Round-middle type, TV cable type, Model: CCL502
1 medium type round drive box, 1 piece
2 cameras for cable TV endoscopes, 1 piece
3 training modules (suture module, perforated module, tightening module), 1 pc of each module, total 3 different pcs
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual

Model Set 3,Squre-middle type, USB cable type, Model: CCL503

Without Computer
1 mid-type square drive box, 1 piece
2 cameras for endoscopes with USB cable, 1 piece
3 training modules (suture module, perforated module, tightening module), 1 pc of each module, total 3 different pcs
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual


Model Set 4,Squre-middle type, TV cable type, Model: CCL504

Without Computer
1 mid-type square drive box, 1 piece
2 cameras for cable TV endoscopes, 1 piece
3 training modules (suture module, perforated module, tightening module), 1 pc of each module, total 3 different pcs
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual


Model Set 5,Squre-large type, USB cable type, Model: CCL505

1 large type square drive box, 1 piece
2 cameras for endoscopes with USB cable, 1 piece
3 training modules, such as suture modulus, punch modulus, clamp modulus, organic silastic modulus, a total of 4 different pieces
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual


Model Set 6,Squre-large type, TV cable type, Model: CCL506

1 large type square drive box, 1 piece
2 cameras for cable TV endoscopes, 1 piece
3 training modules, such as suture modulus, punch modulus, clamp modulus, organic silastic modulus, a total of 4 different pieces
4, Instruments, forceps × 1pc, Scissors × 1pc, Grasper × 1pc, needle holder × 1pc
5, accessories
6, user manual

Frequently asked Questions,
1, whether we can connect to apple iMac or apple ipad? How to connect?
Yes you can, please install the all new Vision QuickTime player software on your Apple or iPad computer.

2, How can we connect with Windows system computer or TV?
The camera system is with USB cable and AV cable,
The USB cable can connect directly to the computer, like a computer mouse.
AV cable can connect to TV system.

3, Can you offer OEM service to put our requested logo on the machine?
Yes we can. Please send your logo or company name to us which you need to put into the machine and package.

4, Can the needle holders be two types right and left?
Yes, we can customize three sizes: right, right and left needle holder.

5, Can the organic silastic model also be used in an average stimulator box?
No, it is only suitable for a large size stimulator box.

6, I want to buy the separate part, single box, or 4 instruments, training modules.
Yes, we can offer it separately.Choose the parts you need.
