- Description
Double Channels Model
Four Channels Model

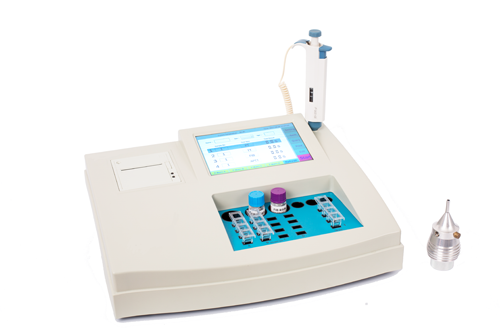

Features of portable semi automated coagulometer analyzer
Double magnetic route
Auto-linked pipette
Testing channel: 2 or 4
7’’ color Touch Screen
Built-in thermal printer
Has Double channel and Four channel two models optional.
Performance for portable semi automated coagulometer analyzer
Double magnetic route, stable performance without interference
The CPU adopt ARM technology to measure the motion of the magnetic ball to work out the coagulation time
It can perform multi-parameter simultaneously with better accuracy, precision and repetition
100 assay parameters and 1000 test results can be saved
Clock CMOS chip inserted
Reagent-open system
Built-in thermal printer
Interface: RS232, USB, pipette-linked port
Power supply: AC220V±15%, 50Hz, 80VA
Technical Specifications
Test method: double magnetic route
Sample consumption: ≤200uL
Reagent consumption: 50uL~200uL
Temperature: 37℃±0.5℃
Adding sample: by a timing linkage
Precision: CV ≤3%
Test speed: ≤300s(depend on setting)
Sample warming up position: 16/8
Reagent warming up position: 6/6
Dimension: 370(L)x290(W)x120(H)mm
Weight: 4Kg(net), 6Kg(gross)
Test itmes
Main test for portable semi automated coagulometer analyzer
PT
APTT
TT
FIB
Others:
Hep
ProC
ProS
Coagulation factor II,V,VII,VIII,IX,X,XI,XII
AT-III
AT
RepT
RVVT
RVVCT
RVVRT
LA
If you don't like this model, please check our other models.
Contact Us Now, Get Discount Now,
Four Channels Model
Features of portable semi automated coagulometer analyzer
Double magnetic route
Auto-linked pipette
Testing channel: 2 or 4
7’’ color Touch Screen
Built-in thermal printer
Has Double channel and Four channel two models optional.
Performance for portable semi automated coagulometer analyzer
Double magnetic route, stable performance without interference
The CPU adopt ARM technology to measure the motion of the magnetic ball to work out the coagulation time
It can perform multi-parameter simultaneously with better accuracy, precision and repetition
100 assay parameters and 1000 test results can be saved
Clock CMOS chip inserted
Reagent-open system
Built-in thermal printer
Interface: RS232, USB, pipette-linked port
Power supply: AC220V±15%, 50Hz, 80VA
Technical Specifications
Test method: double magnetic route
Sample consumption: ≤200uL
Reagent consumption: 50uL~200uL
Temperature: 37℃±0.5℃
Adding sample: by a timing linkage
Precision: CV ≤3%
Test speed: ≤300s(depend on setting)
Sample warming up position: 16/8
Reagent warming up position: 6/6
Dimension: 370(L)x290(W)x120(H)mm
Weight: 4Kg(net), 6Kg(gross)
Test itmes
Main test for portable semi automated coagulometer analyzer
PT
APTT
TT
FIB
Others:
Hep
ProC
ProS
Coagulation factor II,V,VII,VIII,IX,X,XI,XII
AT-III
AT
RepT
RVVT
RVVCT
RVVRT
LA
If you don't like this model, please check our other models.
Contact Us Now, Get Discount Now,
Shipping Information:
G.W: 6kg
Packing Size: 0.4m,0.35m,0.25m
Unit: Piece
