Product info

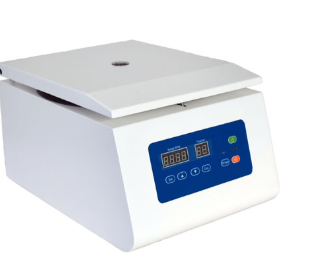

- Product name:Digital Display plate centrifuge
- Product code:CCL-4AWS
Packaging Specifications
- Outer Packaging Size:0.54 × 0.4 × 0.32 m
- Gross Weight:28 kg
- Net Weight:26 kg
- Volume:0.07
Core Parameters
- Model: CCL-4AWS
- Maximum Speed: 4000 rpm
- Speed Accuracy: ±30rpm
- Motor: Brushless DC Motor, Microprocessor Control
- Timer Range: 0~99 minutes
- Noise: ≤50dB(A)
- Power Supply: DC 220V & 110V 50Hz 2A
- Dimension: Digital Display: 460×360×270 mm (L×W×H); LCD Display: 500×360×265 mm (L×W×H)
- Weight: Digital display: 19.5kg; LCD display: 21kg
Description
plate centrifuge is suitable for routine sample analysis in medical,hospital, pathology and institutional laboratories.With wide variety of accessories, they can be also used for preparation of samples in industrial and research laboratories.
Digital Display for plate centrifuge
Features for plate centrifuge
The shell adopts steel structure,which is simple-compact, light-weight and low-noise.
LCD display and adopt control system realizing microprocessor control,it control rotate speed, relative centrifuge force.
Maintenance-free frequency conversion motor,can prevent over-speed Operation.
Technical parameters for plate centrifuge
Model CCL-4AWS
Max Speed 4000r/min
Speed Accurancy ±30rpm
Max RCF 2680×g
Timer Range 0~99min
Motor Brushless DC motor
Motor Power 250W
Acceleration/Deceleration Rate 0~9 grade
Noise ≤55dB(A)
Power Supply AC220V & 110V 50Hz 5A
Dimension 500×360×265mm(L×W×H)
Weight 20kg
Optional Rotor for plate centrifuge
| Rotor Model | Capacity(ml) | Max speed | Max RCF (×g) |
| (r/min) | |||
| No.1 SR | 4×50ml | 4000 | 2680 |
| No.2 SR | 8×10/15ml | ||
| No.3 SR | 12×10ml | ||
| No.4 AR | 18×10ml | ||
| No.5 AR | 24×10ml | ||
| No.6 AR | 4/6×50ml | ||
| No.7 AR | 12×15ml | ||
| No.8 AR | 12×20ml |
