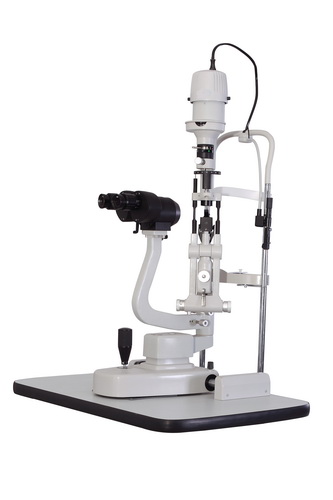

Ordinary slit lamp

Item Code: CCE-1ER
Sold: 100
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Technical Specifications
Microscope

Type Converging Stereoscope
Magnification change Lever type
Light source

 halogen lamp

Real fields of view

9mm-18mm
Stereoscopical angle :
13 degree
13 degree
Eyepiece 10x  16x
Total magnification

10x 16x   25 x


Field of View

10X: 20mm, 16X: 13mm, 25X: 8mm
Range of adjusting the distance of pupil

54mm-92mm(>92mm)
Eyepiece diopter adjustment

≧±6D can reach ±8D(eyepiece10X) ;  ±15D (eyepiece16X) ;
Slit image width

0mm~14mm continuous
Slit image length

1mm~14mm continuous
Diameter of aperture

φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm
Slit angle 0~180 Rota table
Illumination angle

0、5、10、15、20
Filter Heat absorption, Grey, red free(Green), Cobalt blue
Illumination

12v, 50w halogen bulb
Moving

Back and forth moving

90mm
Left and right moving

100mm
Inching moving back and forth, right and left

15mm
Up and down moving 30mm
Jaw bracket part

Up and down moving

80mm
Fixation Red LED (supply power:7V, 0.02W;the lamp itself: 2V,0.006W)
Power

Input voltage 110/220V±10%
Input frequency

50/60Hz
Input power 60VA
Output voltage Illumination:  4.5V    9V    12V
Safe standard of electric  IEC601-1、type Ⅰ, BF Model
Weight and
Dimension

Packing box 720mm x 495mm x 480mm
Gross weight 25Kg
