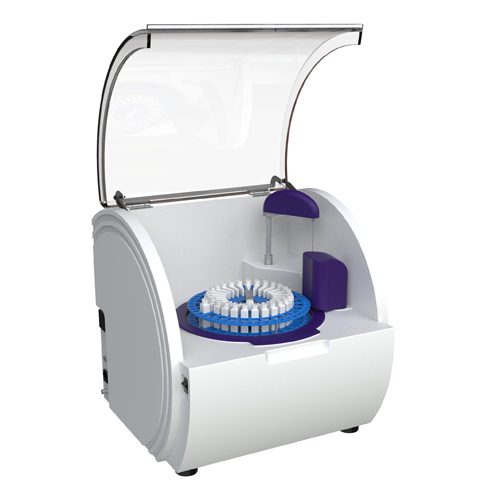

Full Auto Chemistry Analyzer - Model CCL-210

This fully automatic biochemistry analyzer features random access testing and emergency priority mode, with excellent detection efficiency and adaptability. It is compatible with multiple operating systems and has comprehensive functions, capable of testing liver, heart, blood lipid and other items, suitable for various medical testing scenarios. The brand's full-channel contact information and address are also attached.

Core Technical Parameters

1. Detection Performance: Test speed of 210 tests/hour, supporting end point, kinetic, fixed time methods and STAT emergency mode; Wavelength range 340nm-630nm (customizable), absorbance 0~4.0Abs (10mm conversion), resolution 0.0001Abs.
2. Sampling & Reagent: Reagent volume 20~400ul (1ul step), sample volume 2~40ul (1ul step); 54 reagent positions and 45 sample positions, both compatible with various primary sample tubes.
3. Reaction & Cleaning: Reaction tray adopts direct solid-heating system, equipped with 135 reaction cuvettes with auto-washing function, minimum reaction volume 140ul; 7 segment 15 steps auto-washing to prevent carryover.
4. Calibration & Light Source: Supports Linear (one-point, two-point, multi-point), Logit-log 4P and Spline calibration; Halogen tungsten lamp as light source with a service life of more than 2000 hours.
5. System & Data Storage: Compatible with Windows7/8, Windows XP and other systems; Auto save and auto backup for data, customizable print format; Automatic alarm for water lacking and waste water overflow.
6. Energy Consumption & Dimensions: Water consumption ≤4L/hour; Power supply A.C 100~240V, 50~60Hz (auto adaption); Device size 600mm580mm630mm (Length * Width * Height).

Test Items

• Liver Function: ALT, ALP, GGT, TP, AIb, TBIL, DBIL
• Cardiac Markers: LDH, CK, CK-MB, AST, a-HBDH
• Lipids: CHO, TG, HDL_C, LDL_C
• Lipoprotein: Apo A1, APO B, Lp(a)
• Renal Function: BUN, CRE, UA
• Electrolytes: Na, Mg, Ca, K, P, Cl
• Others: CO-CP, AMS, LIP, GLU, IgA, IgG, IgM, C, CRP
