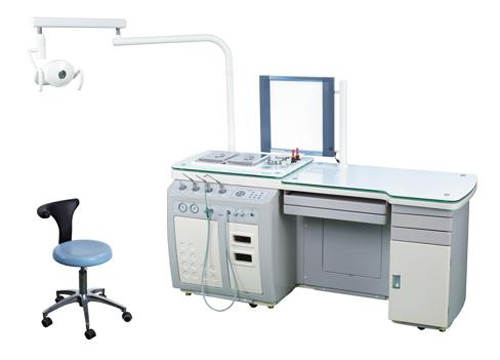

Ear Nose Throat ENT Treatment Workstation Unit

For ear, nose, throat diagnose and treatment
Item Code: CCEN-G60
Sold: 2
    Please select the information you wantX
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • Optional Information
Product Parameter
Power supply tension: 220V, 50Hz Fuse: F10AL/250V
Fuse: F1A/250V, F10AL/250V
Suction at 1500ml/min max, 850mmHg max
Ear rinsing with 37°C~42°C
Alternatively ear rinsing with 37°C~42°C with compressed air system
Compressed air for medication spraying, max. 3 bars
Electric power supply for LED, 12V, 10W, 0.83A, fuse: F1A/250V
LED cold light source 12V, 10W, 0.83A fuse: F1A/250V

Application:For ear, nose, throat diagnose and treatment

Standard equipment
STANDARD EQUIPMENT Qty
LED illuminating light 1
Spray gun (unbent 2 & bend 1) 1
Suction gun 1
Blowing gun 1
Laryngoscope pre-heater 1
Built-in LED light source 1
Luxury thin film viewer 1
Blow-off equipment system (with warning system) 1
Instrument tray 2
Cotton cup 2
Medical bottle 4
Built-in waste tank 1
Built-in equipment recycle tank 1
Doctor chair 1
Vacuum pump 1
Compressor 1


Options
Options Qty
1/3 CCD medical camera 1
LED cold light source 1
Fiber cable 1
Computer set
1
Pinter
Professional ent workstation software
LCD monitor 1
Ear rinsing system 1
Otoscope 1
nasoscope 1
Laryngoscope 1
ENT microscope 1
ENT chair 1



Package,
It is package by wooden standard export package, durable and safety.

ENT Chair:

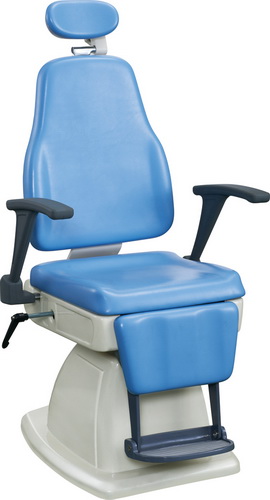

Basic Patient Chair, CCEN-012

Technical parameter:
1.Voltage:AC220V,50Hz,  AC110V,60Hz
2.Power:230W(max) and low power consumption, energy saving
3.Under weight pressure:250kg(max)
4.Seat height adjustment:(minimum) 500mm-650mm(maximum)
5.Backrest adjustment angle:90°
6.Pillow flex:100mm(folding, detachable)
7.Electro motor – 1/piece.
8.Wooden case packing size: 695*720*1230(mm)
9.Rough weight: 82kg;Net weight: 60kg

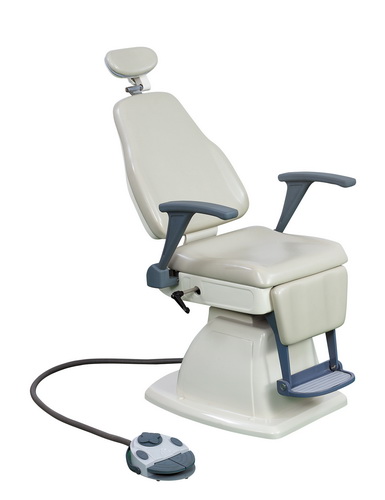

Standard Patient Chair, CCEN-011



Technical parameter:
1.Voltage:AC220V,50H
2.Power:230W(max) and low  power consumption, energy saving
3.Under weight pressure:250Kg(max)
4.Seat height adjustment:(minimum) 560mm-710mm(maximum)
5.Length in the range of 1570 mm;Width in the range of 650mm;
Base in the range of 475mm; Section of seat in the range of 460-500 mm;
Section of back in the range of 560mm; Head restraint in the range of 225 mm;
Section of legs in the range of 340mm.
6.Backrest adjustment angle:90-135°
7.Pillow flex:100mm(folding, detachable)
8.Electro motor – 2/pieces.
9.Seat can be rotated 180°
10.Wooden case packing size: 790*750*1335(mm)
11.Rough weight: 112kg;Net weight: 80kg

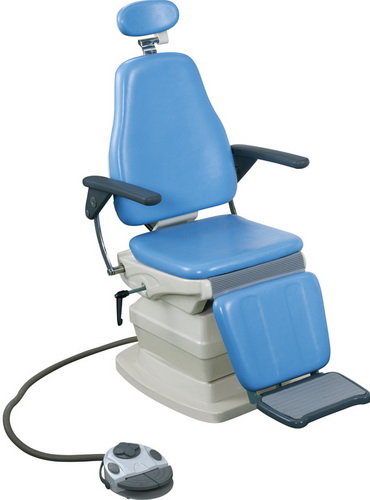

Luxury Patient Chair, CCEN-010

Feature: The seat can be up & down, backrest can be forward & backward, arms
moves together with leg pads, seat can be rotated 180°.
1.Voltage:AC220V,50Hz.  AC110V,60Hz
2.Power:230W(max) and low power consumption, energy saving.
3.Under weight pressure:250Kg(max).
4.Seat height adjustment:(min) 530mm-680mm(max)
5.Length in the range of 1950 mm;Width in the range of 625mm; Base in the range of 490mm;
Section of seat in the range of 460-460 mm; Section of back in the range of 550mm;
Head restraint in the range of 225 mm; Section of legs in the range of 330mm.
6.Armrest and backrest connections moving, the backrest can be adjusted from 90-180°.
7.Pillow flex:100mm (folding, detachable).
8.Electro motor – 2/pieces.
9.Seat can be rotated 180°.
10.Wooden case packing size: 1160x760x1285(mm) .
11.Rough weight: 170kg;Net weight: 115kg.


1/3 CCD medical camera


LED cold light source


Fiber cable


Computer set +Pinter +Professional ent workstation software,
Application: Can analyze the result, and check the patient result and print our report.


LCD monitor,
to check the patient directly.


Ear rinsing system


Otoscope,Φ4;90mm,0°


Nasoscope, Φ4;175mm,0°


Laryngoscope, Φ8;185mm,90°


ENT Microscope,



Shipping Information:

G.W: 280kg

Packing Size: 2m,0.89m,1m

Unit: Piece

Special: No
