Description

Specifications

Configuration:

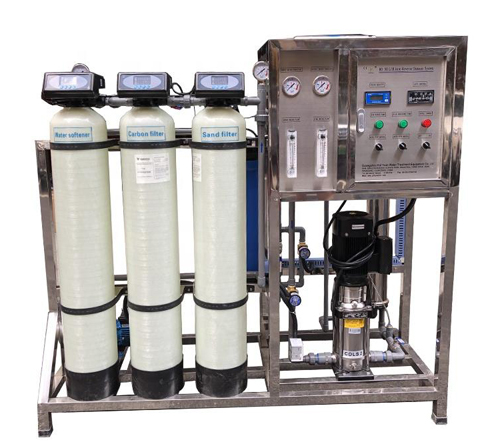

Item No.   Equipment Name(250LPH RO )   Quantity
1 Raw water pump BJZ037 SUS-304   1 pc
   A. Flow: 1.0m3 / H, Head: 25m, K = 0.37kw
   B. include: Inlet/outlet water valve, pipe etc. U-PVC   1 batch
2 Quartz sand filter φ200 × 1100   1set
   A. Tank Material: FRP   1 pc
   B. Automatic control valve    1 pc
   C. Quartz sand   50KG
   D. Inlet water pressure meter 0-7kg   1 pc
3 Activated carbon filter φ200 × 1100   1set
   A. Tank Material: FRP   1 pc
   B. Automatic control valve    1 pc
   C. Activated carbon   25KG
   D. Output water pressure meter 0-7kg   1 pc
4 Water softener Φ200×1100   1set
   A. Tank Material: FRP   1pc
   B. Automatic control valve F65B   1set
   B. Salt tank PE   25L
   C. Cation resin 001 x 7   25L
   D. Flow meter,pressure meter etc.   1 batch
   E. Pipe,valve etc. U-PVC   1 batch
5 Security filter     1set
   A. Type: 20 "×1 core Material: U-PVC   1 pc
   A. Type: 20 "×5 μm , PP filter cartridge   1 pc
6 High-pressure pump CDLS2-11 SUS-304   1 pc
   A. Flow: 1.0 m3 / h, head: 80m, K =1.1KW

7 Reverse osmosis water system Capacity: 0.25m3 / h, maximum working pressure: 1.5MPa,
desalination rate: ≥97%, system water use efficiency: ≥ 25%   1set
   A. Membrane components 4040 Material: SUS-304   1 pc
   B. Membrane ULP31-4040   1 pc
   C. Stainless steel rack   1 pc
   D. Inlet water solenoid valve DN20 Copper   1 pc
   E. Dense water solenoid valve DN15 Copper   1 pc
   F. High-pressure inlet water regulating valve DN20 SUS-304    1 pc
   G. Dense water flow regulating valve DN15 SUS-304   1 pc
   H. Flow meter / pressure gauge   1 batch
   I. Low voltage protection switch   1pc
   J. Valves, U-PVC pipe   1 batch

8 Electronic control system   1set
   A. PC program controller   1 pc
   B. RO online water quality detector   1 pc
   C. AC contactor, thermal relay   1 batch
   D. Air switch, fuse box   1 batch
   E. Indicator light, knob switch   1 batch
   F. Intermediate relay   1 batch
   G. Terminals, electrical miscellaneous pieces   1 batch
9   UV sterilizer 14W   1set

A. The quotation process and equipment is meet client’s requirements as following:
1.Raw water quality:well water, TDS≤1000PPM
2.Output water application: drinking water
3.Reverse osmosis system product water: 0.25m3 / h (water production basis on water temperature 25℃).
4.Reverse osmosis desalination rate≥97%.
5. When turn on total power, the equipment will auto flush ro membrane 90 seconds, then go to operation.

B. the system is for the outside request:
(1) water flow: run water ≥1.0m3 / h
(2) recoil water: about 1.0 m3 / h.
(3) Power supply: power supply conditions 220V/1 phase/380V/3 phase/50Hz
(4) total power capacity about: 1.5KW

C. Process:
raw water→raw water tank(buyer supply)→raw water pump→quartz sand filter→activated carbon filter→ water softener→ security filter→high pressure pump→ro system→uv sterilizer→pure water tank(buyer supply)→water supply point
