- Description
Specifications
Specifications,
Dimensions |
235.7mm*115.2mm*23.2mm |
Package Dimensions |
350mm*215mm*76mm |
Weight |
0.754kg |
Package Weight |
1.527kg |
Body Temp Measurement |
8*8 Thermopile,Distance: 30~50cm,Accuracy ±0.2℃~±0.5℃ |
CPU |
ARM 4 Cores |
RAM |
1GB |
Camera |
RGB&AI Dual WDR Cameras, Micron AR0230 Sensors |
Sockets |
RS485,RS232,Wiegand26/34,TTL,On-Off signal(D1,D0),LAN,WIFI |
Extensibility |
Connect to cloud, support background processing |
Facial Recognition |
1:1,1:N |
Operating Temperatures |
Face Recognition -15~60℃ BodyTemperatureMeasurement:15~30℃ |
Operating Humidity |
≤90% |
Rated Voltage & Current |
DC12V, 2A |
Certification |
CE |
Body Temperature Abnormality Warning
After face recognition AI algorithm and temperature data optimization and calibration, the pedestrian frontal temperature is only detected to ensure the accuracy error of ±0.3°C, and the real-time alarm of suspected abnormal body temperature is realized. The system supports the secondary verification of suspected abnormal body temperature. Accurate temperature detection in 2-3 seconds/person. Non-contact rapid body temperature screening to reduce the risk of cross infection.
Support standard API interface
Support standard API interface, can be connected with various business systems. Support GLAN, WIFI, 3G/4G, realize network connection. Automatically record temperature measurement data and generate reports. Push real-time local data to achieve cloud management and multi-layer upper-layer applications.

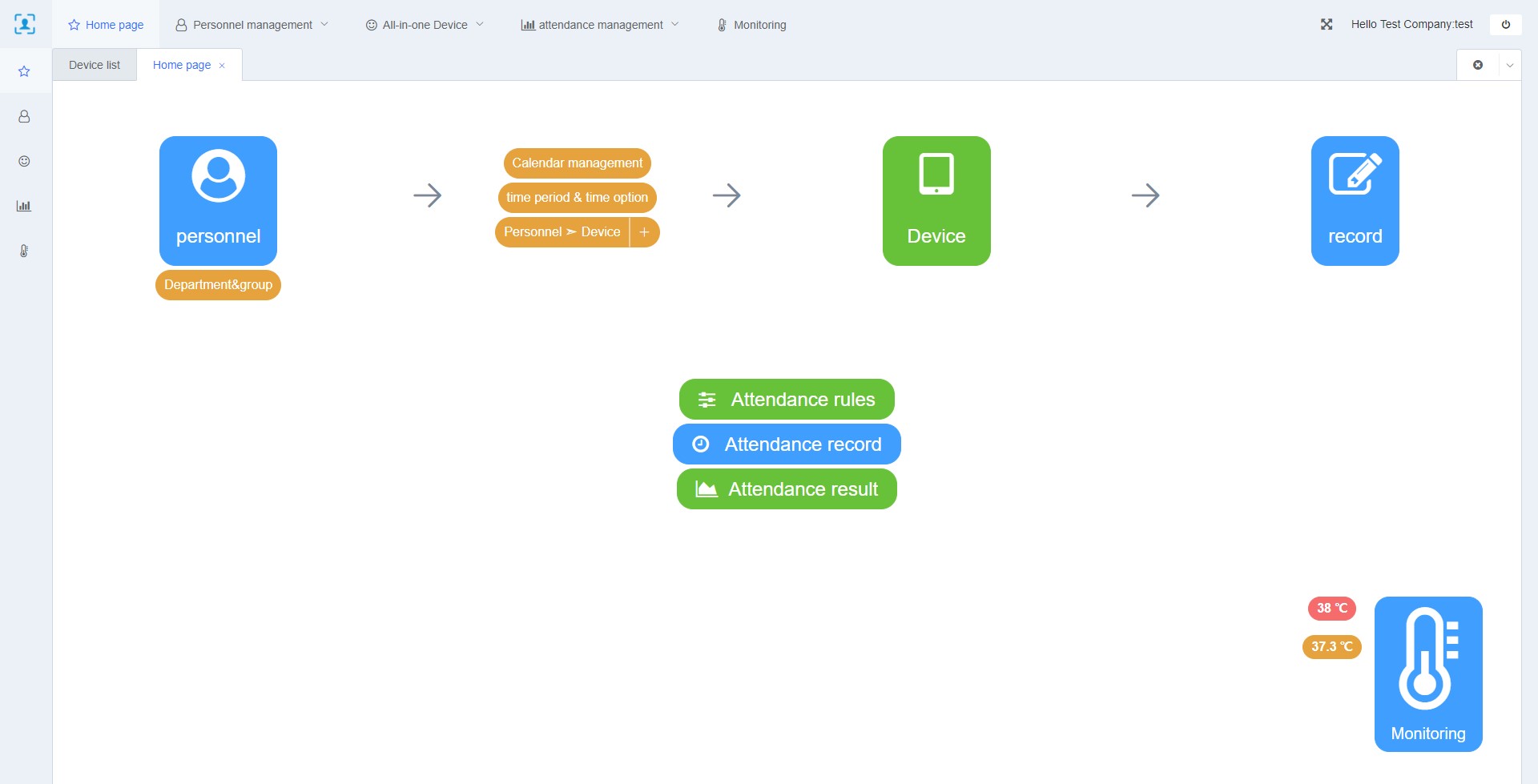

Background Processing
