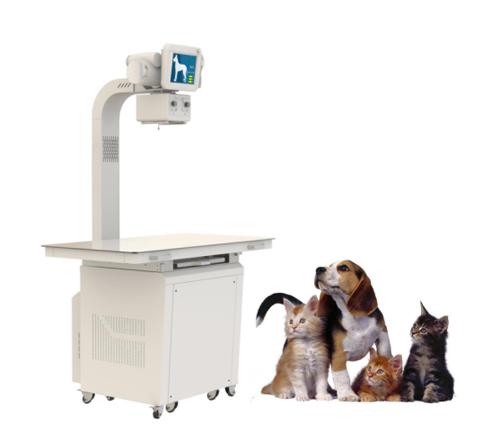

Digital Portable X-ray System For Veterinary

Item Code: CCV20D
Sold: 5
Write a review
Share this:
Have a question?
Market Price:
USD $38,000.00
Price:
USD
$20,930.00
Save $17,070.00(44% Off)
    Please select the information you wantX
  • choose configuration
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
Add to Favorite Items
  • Description
Specifications of CCV20D-1, 20kW, 200mA



X-ray Generator
 		 Output Power 20kW
Power Voltage 220V±22V
kV range 40~120kV
mA range 32~200mA
mAs range 0.32 ~200mAs
Loading time 10~4000ms


 X-ray Tube		 Small focus 1.0
Large focus 2.0
Anode speed 2800r/min


Collimator		 Inherent filtration 1.0mm Al /75kV
Light Source Super LED



Mechanic Table
 		 SID 1000mm
Bucky 18*18
Bearing ≤150kg
Top Table Size 1220X700X830mm
Table Movement With wheels
Floating Table Top Movements Two Ways
Floating Table Top Position by soundless manual Brakes





X-ray Generator
 		 Output Power 20kW
  Power Voltage 220V±22V
  kV range 40~120kV
  mA range 32~320mA
  mAs range 0.32 ~320mAs
  Loading time 10~5000ms


 X-ray Tube		 Small focus 1.0
  Large focus 2.0
  Anode speed 2800r/min


Collimator		 Inherent filtration 1.0mm Al /75kV
  Light Source Super LED



Mechanic Table
 		 SID 1000mm
  Bucky 18*18
  Bearing ≤150kg
  Top Table Size 1220X700X830mm
  Table Movement With wheels
  Floating Table Top Movements Four Ways
  Floating Table Top Position by electromagnet

Specifications of CCV20D-1, 20KW, 400mA


X-ray Generator
 		 Output Power 32kW
  Power Voltage 220V±22V
  kV range 40~125kV
  mA range 32~400mA
  mAs range 0.32 ~400mAs
  Loading time 10~5000ms


 X-ray Tube		 Small focus 1.0
  Large focus 2.0
  Anode speed 2800r/min


Collimator		 Inherent filtration 1.0mm Al /75kV
  Light Source Super LED



Mechanic Table
 		 SID 1000mm
  Bucky 18*18
  Bearing ≤150kg
  Top Table Size 1400X700X850mm
  Table Movement With wheels
  Floating Table Top Movements Four Ways
  Floating Table Top Position by electromagnet

Shipping Information:

G.W: 340kg

Packing Size: 2.7m,1m,1m

Unit: Piece

Special: No
